Center Junction Block

Behind the Combination Meter  (See Figure)

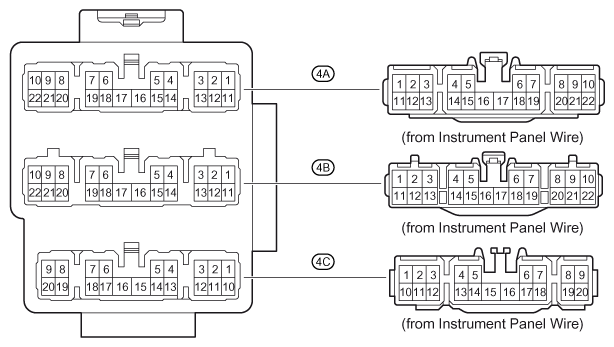

Fig 1: Center J/B Connector Locations
G07599124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
