Headlight Assembly: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

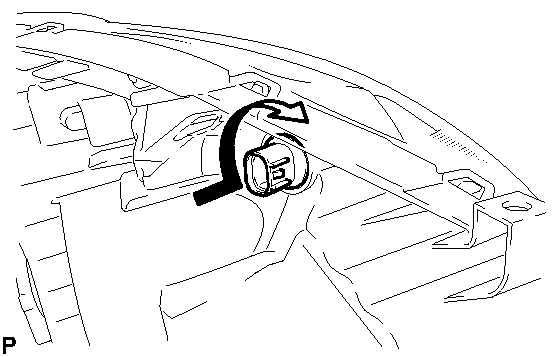

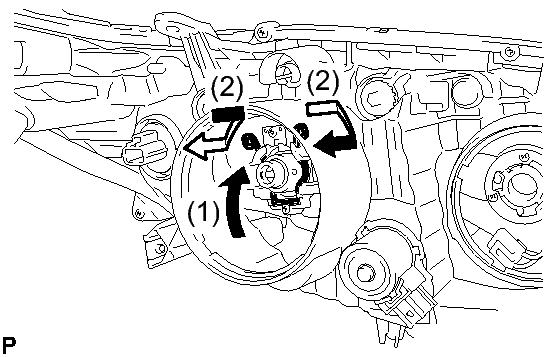

INSTALL SIDE MARKER LIGHT BULB
1. Install the side marker light bulb to the side marker light socket.
2. Turn the side marker light bulb and side marker light socket in the direction indicated by the arrow shown in the illustration and install them as a unit.

  Fig 1: Installing Side Marker Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

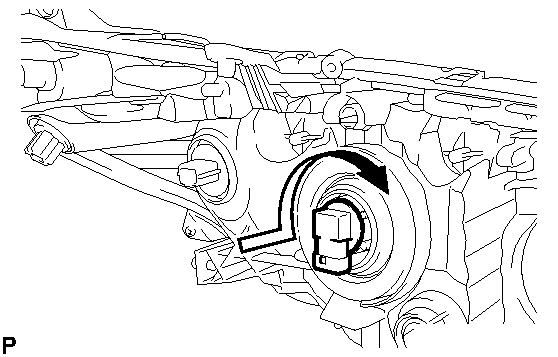

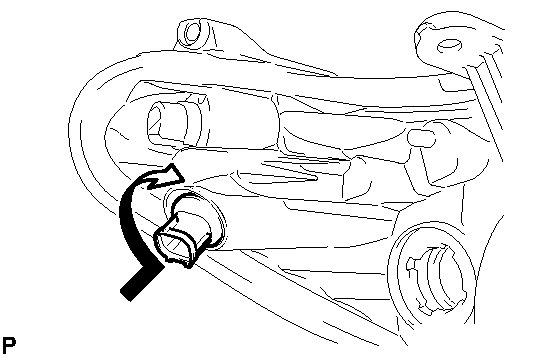

INSTALL FRONT TURN SIGNAL LIGHT BULB
1. Install the front turn signal light bulb to the front turn signal light socket.
2. Turn the front turn signal light bulb and front turn signal light socket in the direction indicated by the arrow shown in the illustration and install them as a unit.

  Fig 2: Installing Front Turn Signal Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

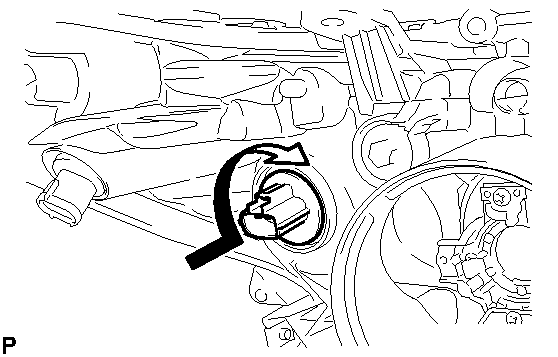

INSTALL AUXILIARY LIGHT BULB
1. Install the auxiliary light bulb to the headlight socket.
2. Turn the auxiliary light bulb and headlight socket in the direction indicated by the arrow shown in the illustration and install them as a unit.

  Fig 3: Installing Auxiliary Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 HEADLIGHT BULB (for Halogen Headlight)
1. Turn the No. 2 headlight bulb in the direction indicated by the arrow shown in the illustration to install it.

  Fig 4: Installing No. 2 Headlight Bulb (For Halogen Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass.
INSTALL DISCHARGE HEADLIGHT BULB (for HID Headlight)
1. Lock the set spring to install the discharge headlight bulb as shown in the illustration.

  Fig 5: Installing Discharge Headlight Bulb (For HID Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass.
INSTALL LIGHT CONTROL ECU (for HID Headlight)
1. Turn the socket of the light control ECU in the direction indicated by the arrow shown in the illustration to connect it.

  Fig 6: Installing Light Control ECU (For HID Headlight) Component
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Check that the O-ring is installed on the light control ECU.
  - Check that the O-ring is not damaged or contaminated with foreign matter. If there is any damage, replace the O-ring with a new one.
  - Do not pull the light control ECU with the socket connected.

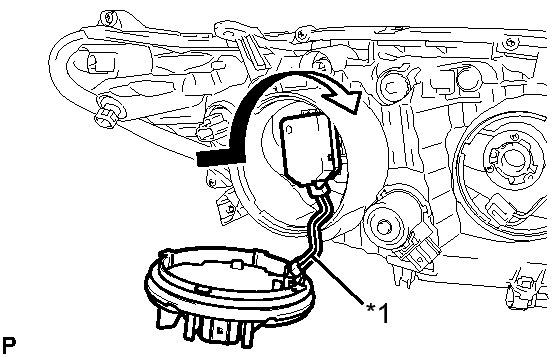

2. Check that the red line on the output harness is not twisted and store the harness in the headlight assembly securely so that the output harness is not pinched.
  TEXT IN ILLUSTRATION

  *1 Red Line

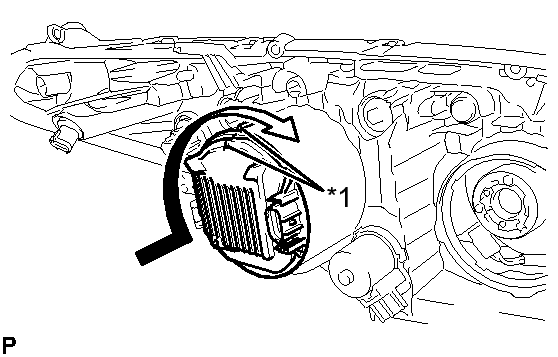

3. Turn the light control ECU in the direction indicated by the arrow shown in the illustration until the lock marks are aligned to install it.

  Fig 7: Locating Light Control ECU (For HID Headlight) Lock Mark Component
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Lock Mark
  NOTE:
  - To prevent incomplete installation, make sure to fully push in and turn the light control ECU until the lock marks are aligned.
  - Do not apply excessive force using a tool.

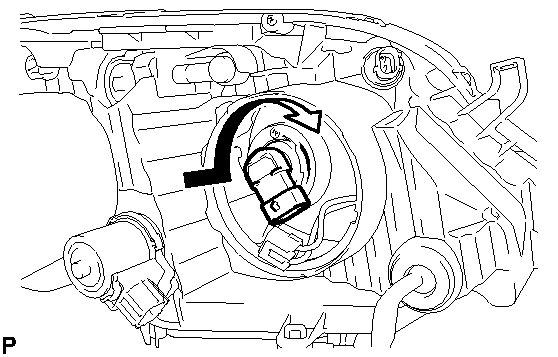

INSTALL NO. 1 HEADLIGHT BULB (for Halogen Headlight)
1. Turn the No. 1 headlight bulb in the direction indicated by the arrow shown in the illustration to install it.

  Fig 8: Installing No. 1 Headlight Bulb Component (For Halogen Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass.
INSTALL NO. 1 HEADLIGHT BULB (for HID Headlight)
1. Turn the No. 1 headlight bulb in the direction indicated by the arrow shown in the illustration to install it.

  Fig 9: Installing No. 1 Headlight Bulb (For Hid Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass.
2. Connect the connector.

  Fig 10: Locating No. 1 Headlight Bulb (For HID Headlight) Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

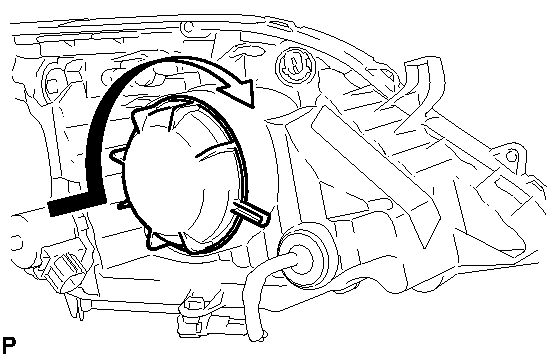

INSTALL HEADLIGHT SOCKET COVER (for HID Headlight)
1. Turn the headlight socket cover in the direction indicated by the arrow shown in the illustration to install it.

  Fig 11: Installing Headlight Socket Cover (For HID Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
