Valve Body Assembly: Components

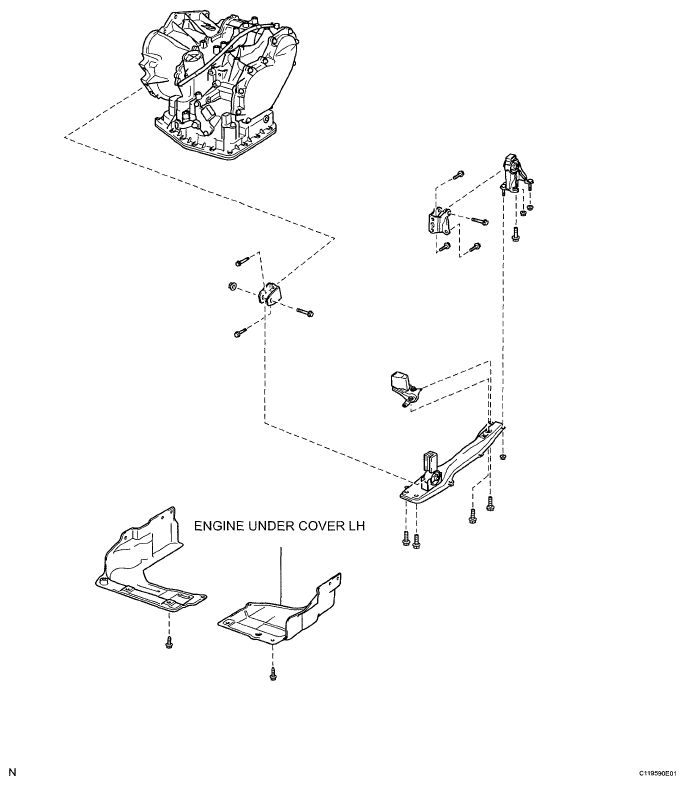

Fig 1: Identifying Valve Body Assembly Replacement Components (1 Of 3)
G05575239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

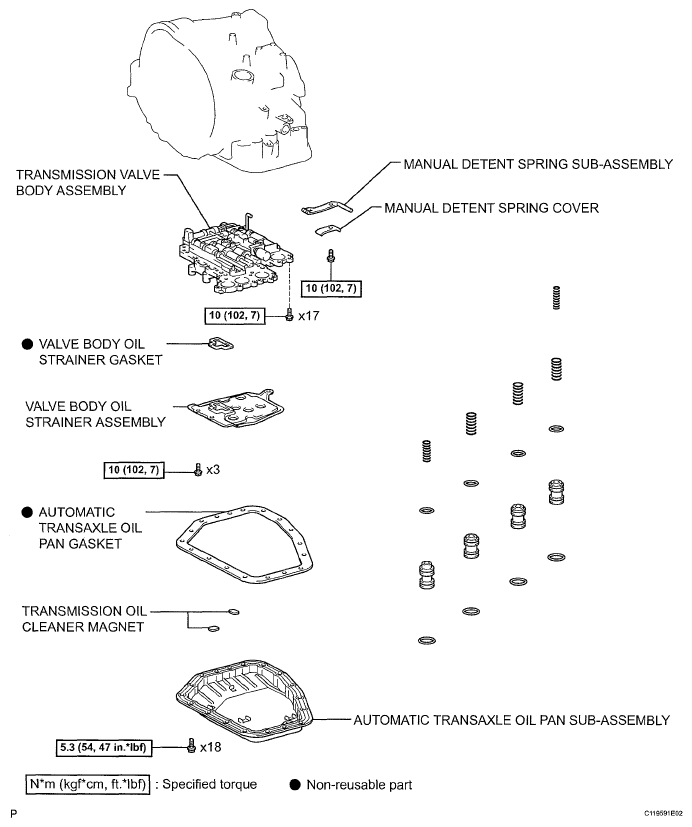

Fig 2: Identifying Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
G05575240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

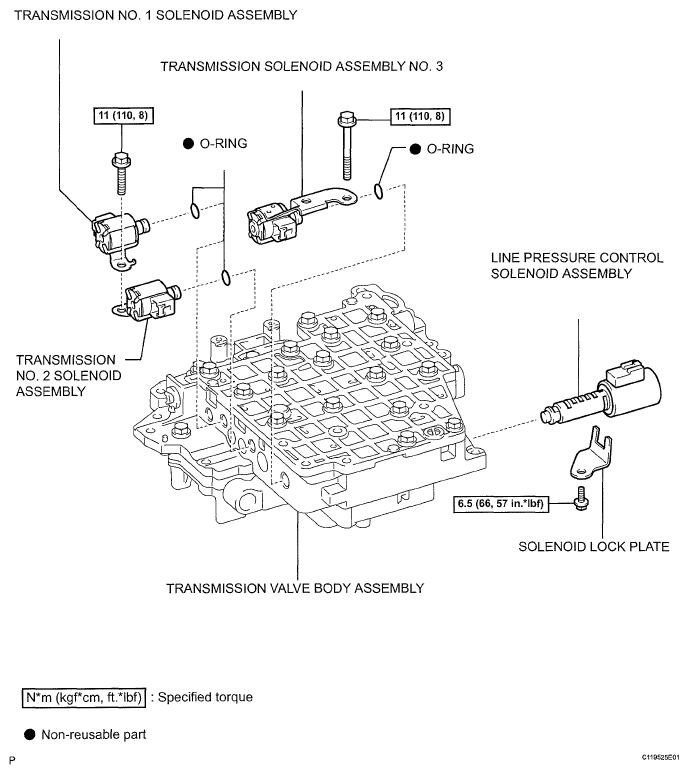

Fig 3: Identifying Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
G05575241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
