System Diagram

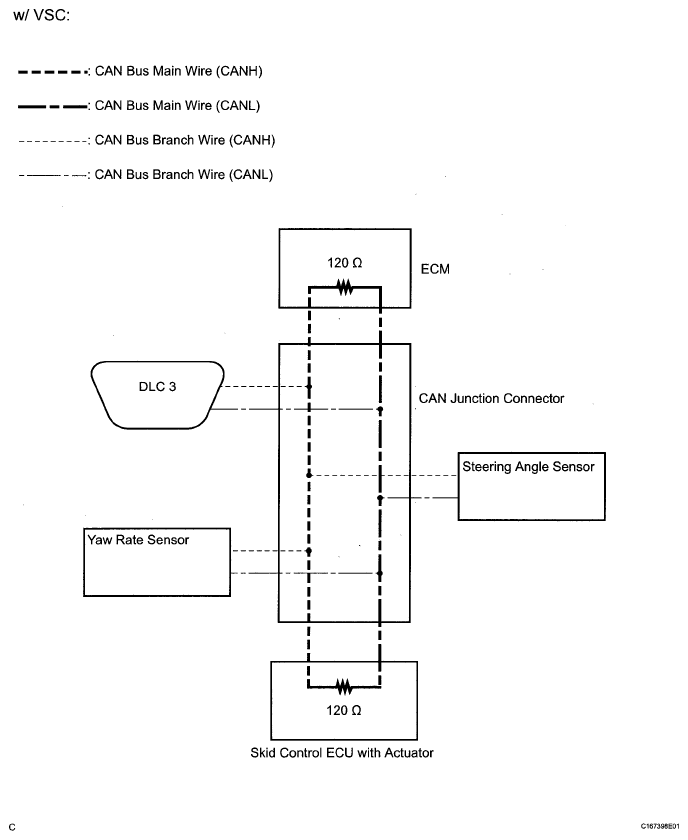

Fig 1: CAN - System Diagram (W/ VSC)
G05576472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

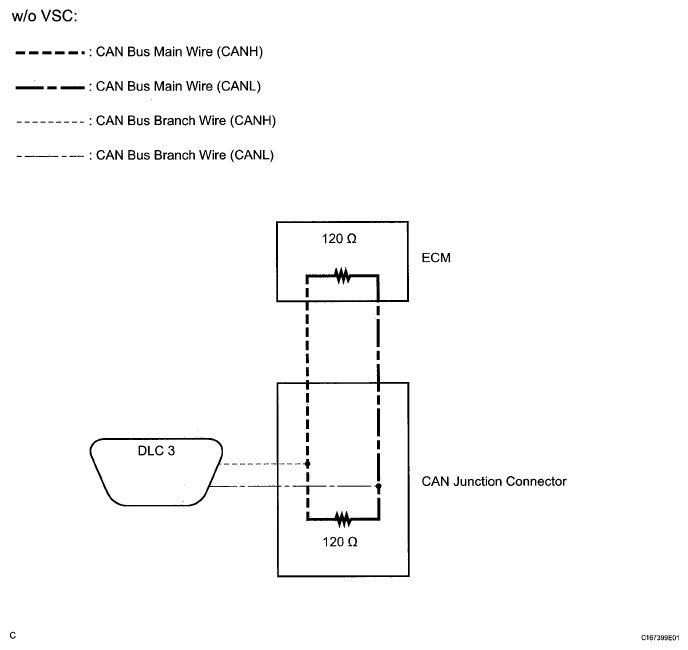

Fig 2: CAN - System Diagram (W/O VSC)
G05576473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
