Inspection Procedure

  1. INSPECT DLC3
    1. Turn the ignition switch to the ON position.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      VOLTAGE SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      D1-13 (TC) - D1-4 (CG) IG switch ON 11 to 14 V
      Fig 1: Identifying DLC3 Connectors Terminals
      G05194767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG:  Go to step  3

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - TC of DLC3)
    1. Disconnect the skid control ECU connector.

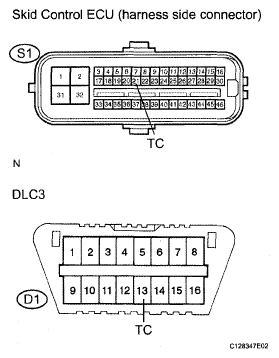

      2. Fig 2: Identifying Terminal TC Of DLC3 And Skid Control ECU Connector
      G05194829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITION

      Tester Connection Specified Condition
      S1-21 (TC) - D1-13 (TC) Below 1 Ω
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITION

      Tester Connection Specified Condition
      S1-21 (TC) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE BRAKE ACTUATOR ASSEMBLY

  3. CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITION

      Tester Connection Specified Condition
      D1-4 (CG) - Body ground Below 1 Ω
      Fig 3: Identifying Terminal CG Of DLC3 Connector
      G05194830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - TC of DLC3)
    1. Disconnect the skid control ECU connector.
      2. Fig 4: Identifying Terminal TC Of DLC3 And Skid Control ECU Connector
      G05194829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITION

      Tester Connection Specified Condition
      S1-21 (TC) - D1-13 (TC) Below 1 Ω
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITION

      Tester Connection Specified Condition
      S1-21 (TC) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE BRAKE ACTUATOR ASSEMBLY
