Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TCM
1. Install the TCM to the automatic transaxle assembly.
2. Install and tighten the 2 bolts in the order shown in the illustration.

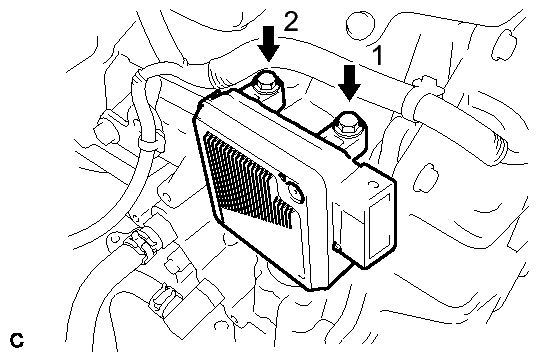

  Fig 1: Locating Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
3. Connect the connector to the TCM.

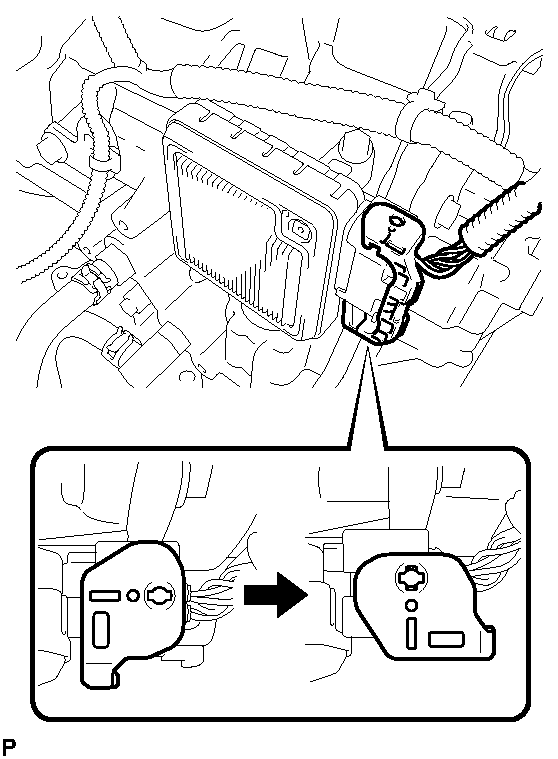

  Fig 2: Identifying Connector To TCM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the lock lever and secure the connector with the lock lever.
INSTALL INTAKE AIR RESONATOR SUB-ASSEMBLY . Refer to INSTALLATION - Step 68
INSTALL NO. 1 AIR CLEANER INLET . Refer to INSTALLATION - Step 69
INSTALL NO. 2 AIR CLEANER INLET . Refer to INSTALLATION - Step 72
INSTALL BATTERY
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 101
PERFORM TCM REGISTRATION
HINT:

Refer to REGISTRATION .
