E3 (Engine Control Module)

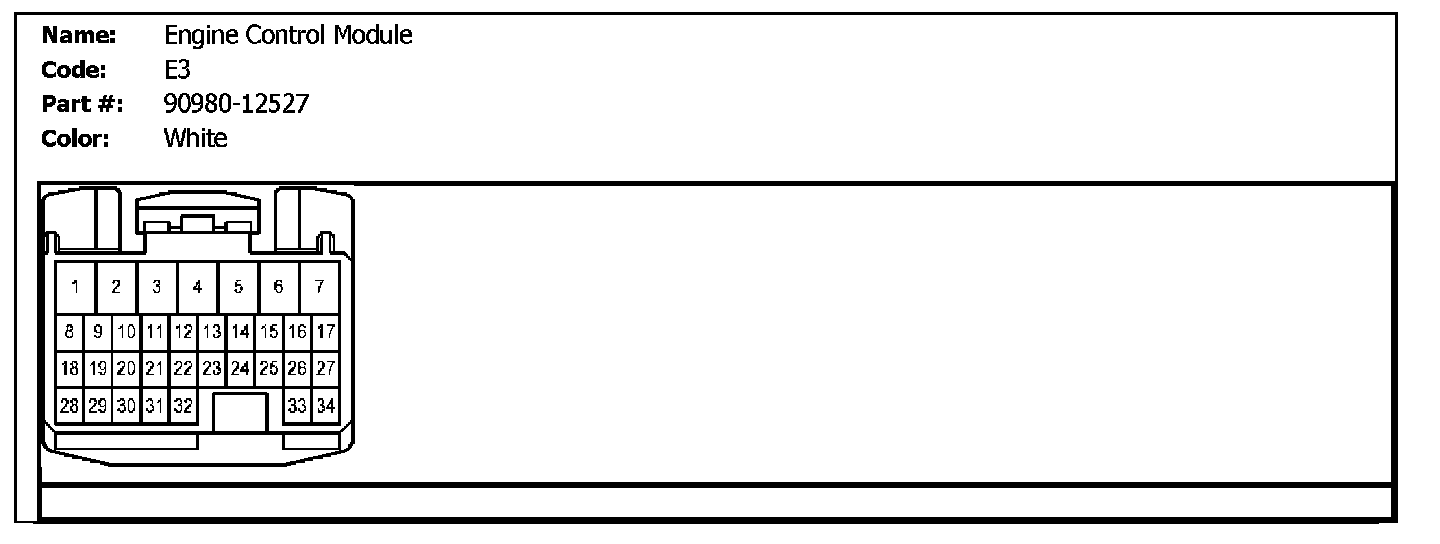

E3 (Engine Control Module):



E4 (Engine Control Module):



E5 (Engine Control Module):

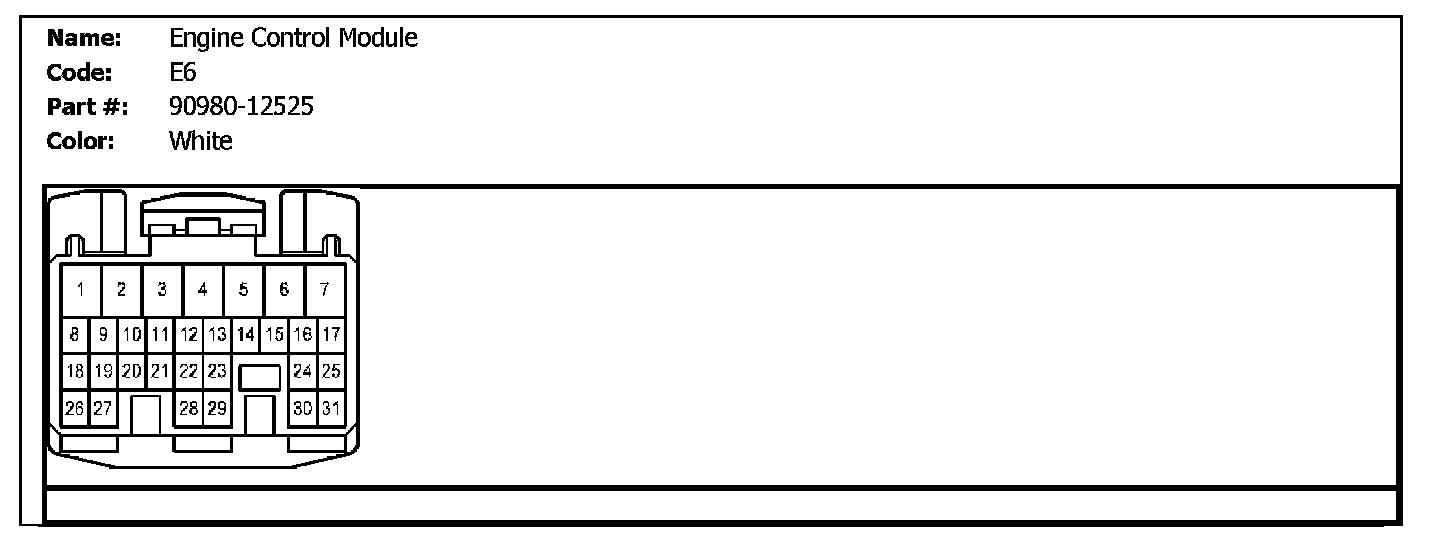

E6 (Engine Control Module):
