Electronic Brake Control Module

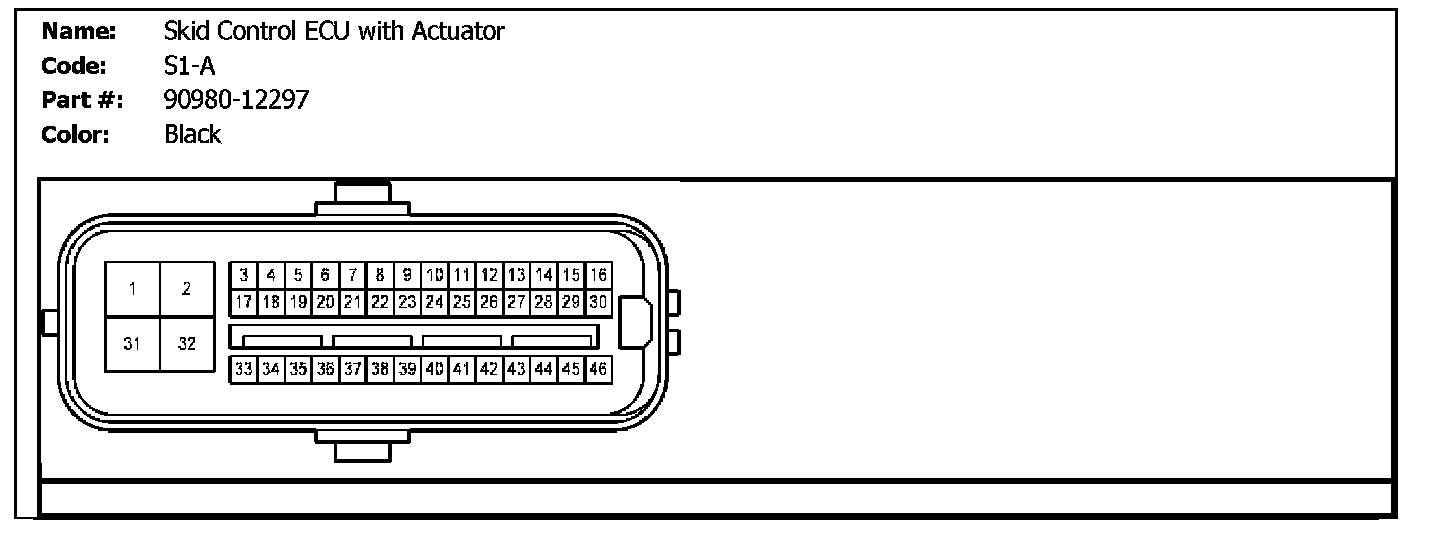

S1-A (Skid Control ECU With Actuator):

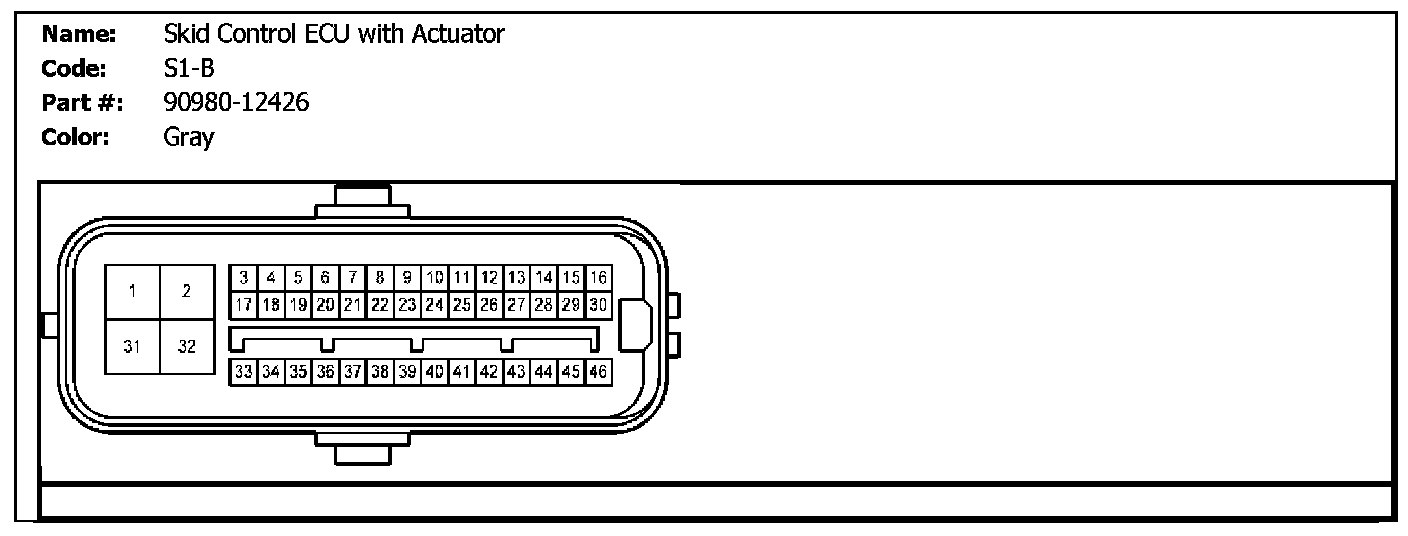

S1-B (Skid Control ECU With Actuator):
