Fuse Block

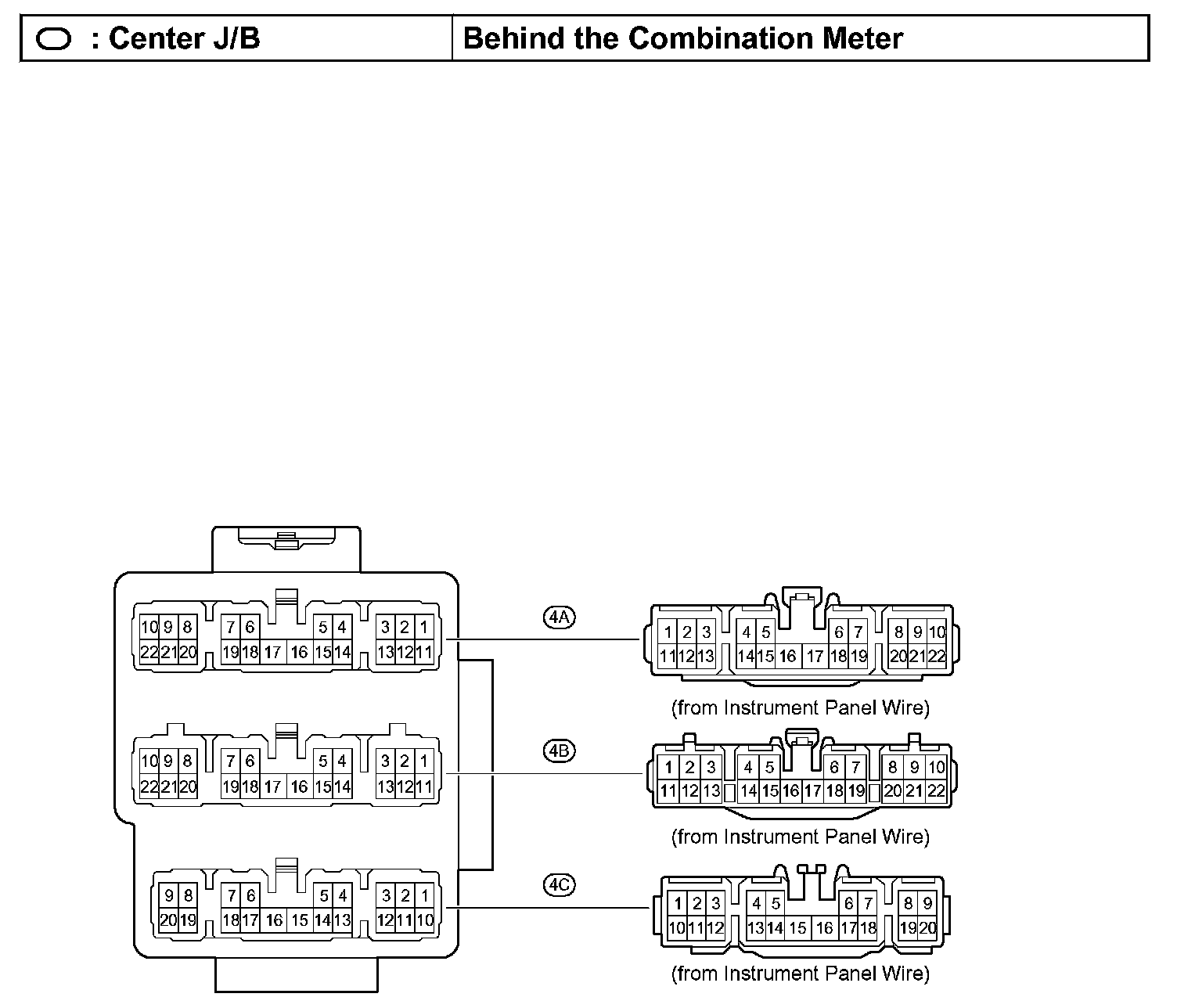

Center J/B - Behind The Combination Meter:

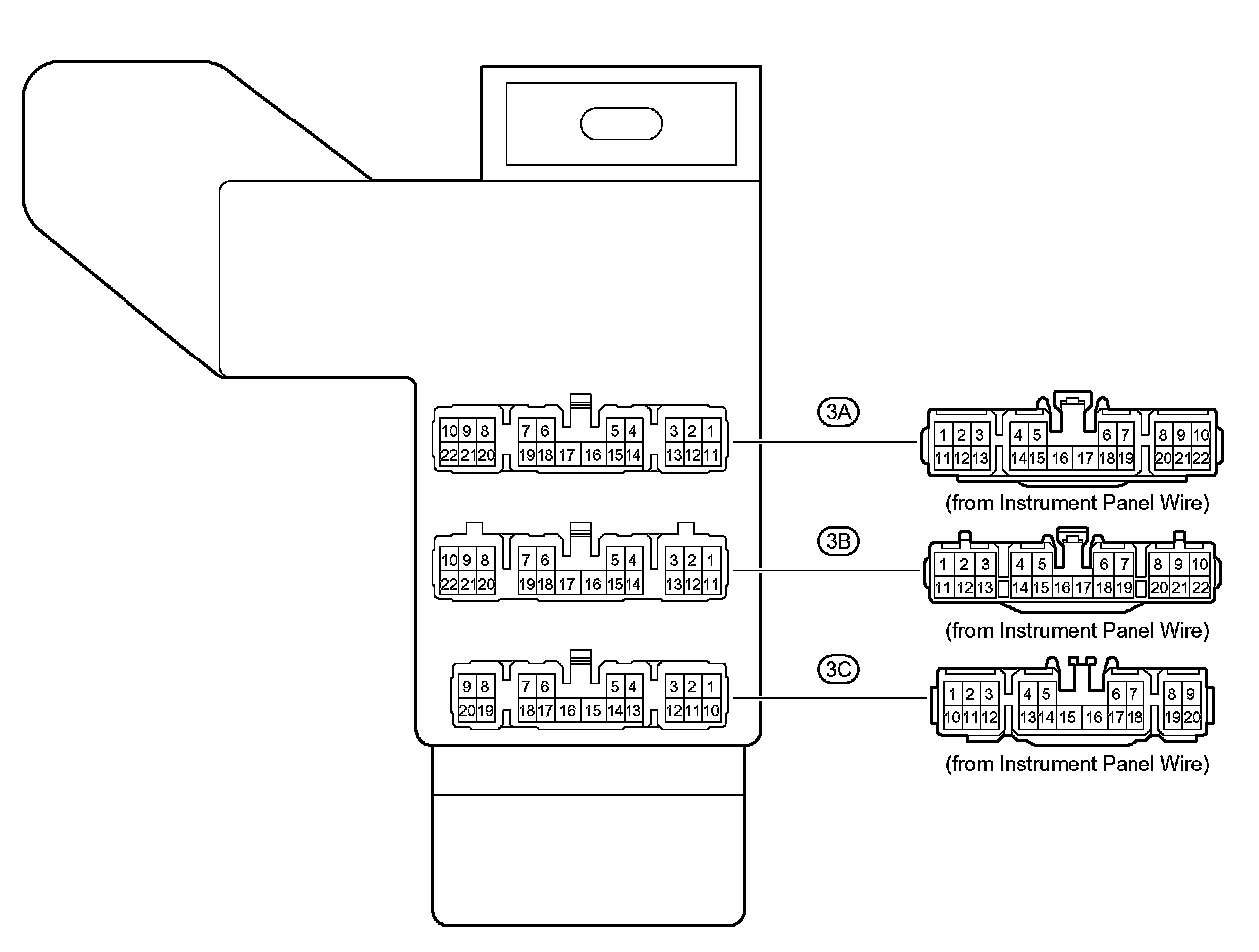

Engine Room R/B And Engine Room J/B - Engine Compartment Left:



Instrument Panel J/B - Lower Finish Panel:



Instrument Panel J/B - Lower Finish Panel:

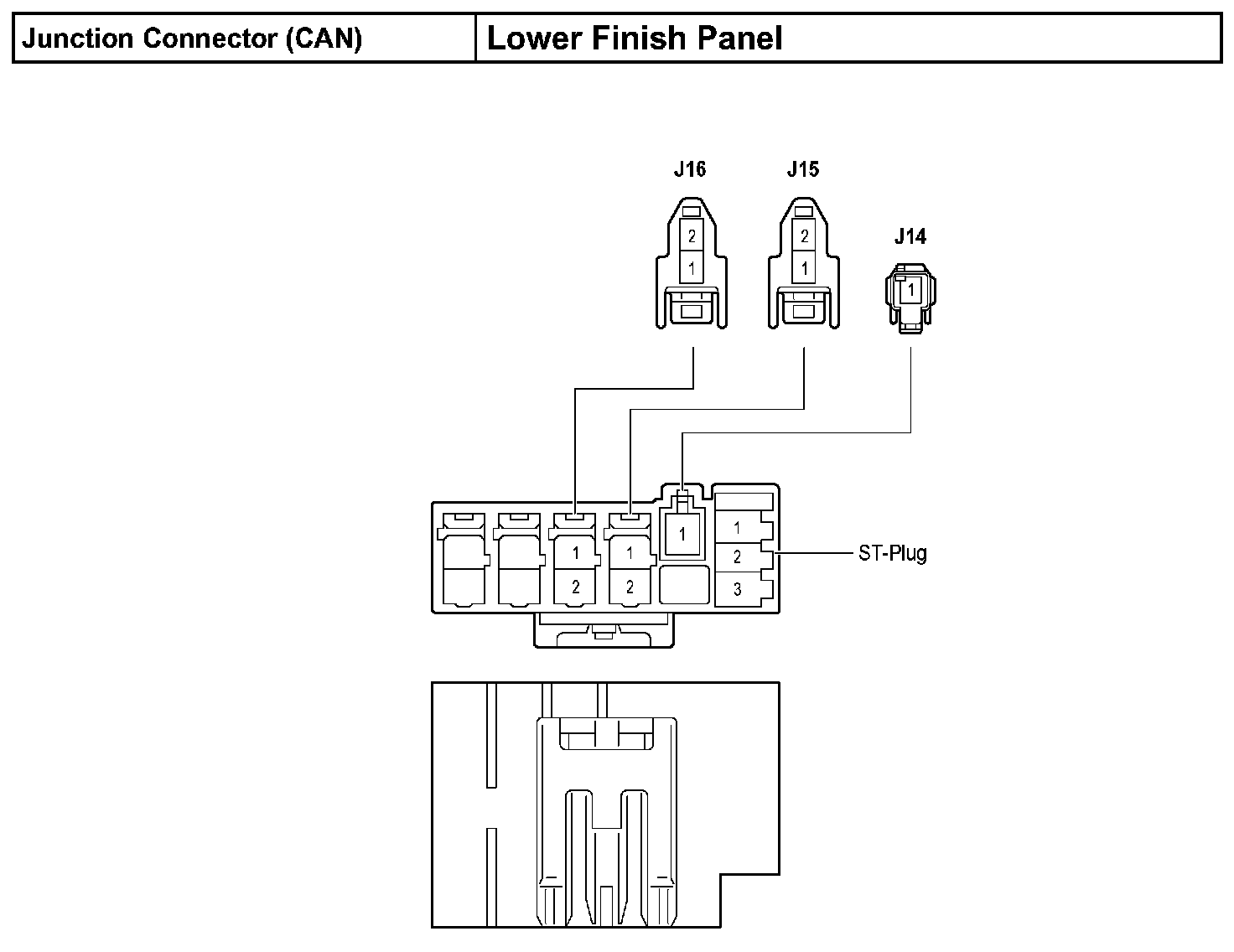

Junction Connector (CAN) - Lower Finish Panel:

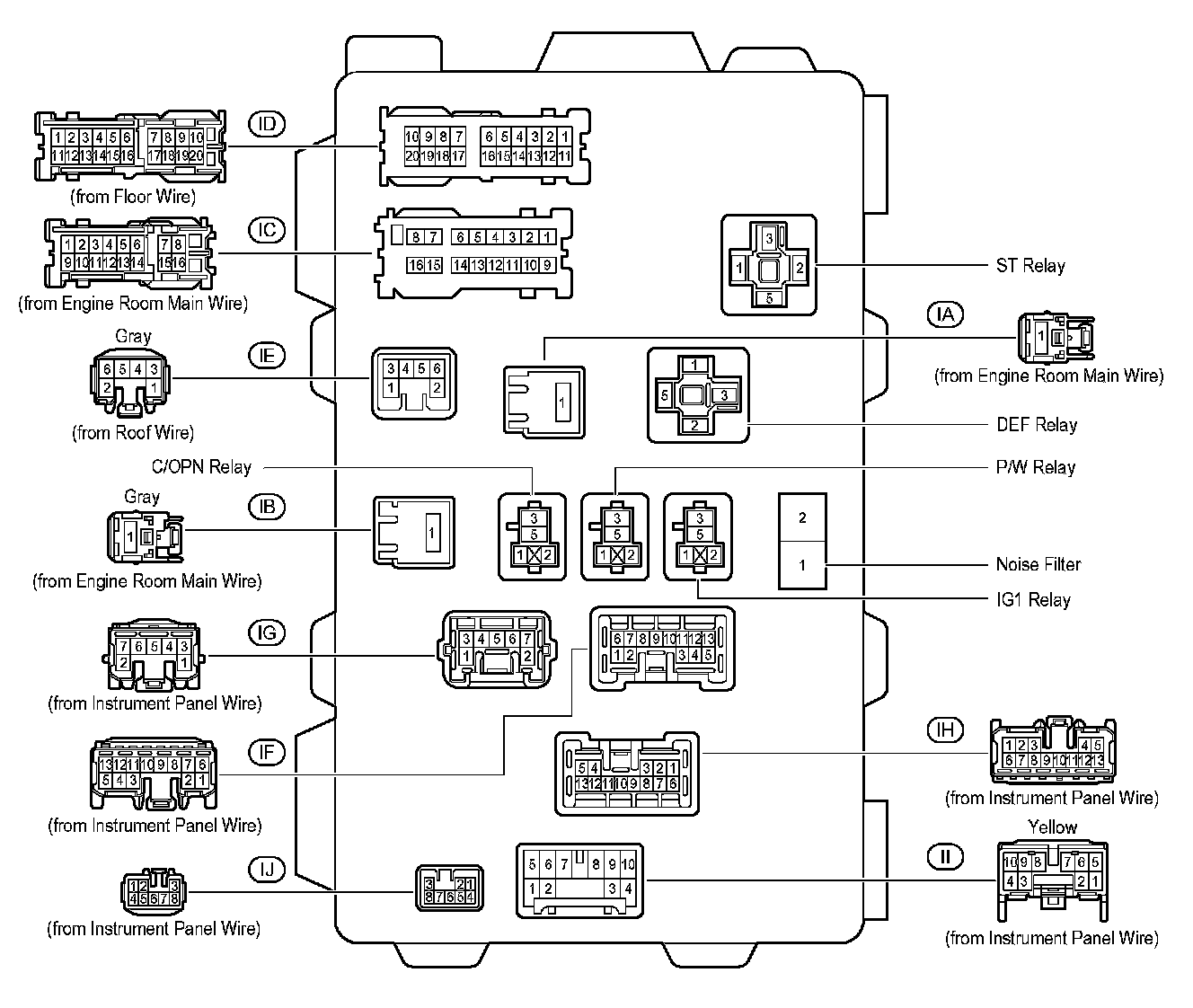

RH R/B And J/B Right Side Of The Instrument Panel Reinforcement:
