Reassembly

AIR CONDITIONING: COMPRESSOR AND MAGNETIC CLUTCH (for 1ZZ-FE):

COMPONENTS





REASSEMBLY

1. INSTALL MAGNETIC CLUTCH ASSEMBLY

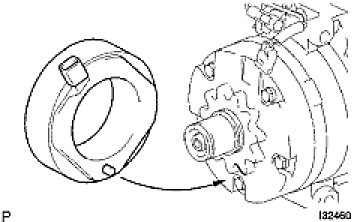

(a) Matching the parts shown in the illustration, install the magnetic clutch stator.

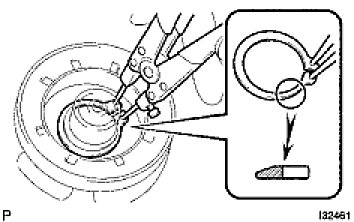

(b) Using a snap ring expander, install a new snap ring with the chamfered side facing up.
(c) Install the screw and connect the connector.

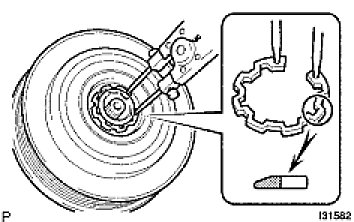

(d) Using a snap ring expander, install the magnetic clutch rotor and a new snap ring with the chamfered side facing up.
(e) Install the magnetic clutch washer and magnetic clutch hub.

NOTE: Do not change the combination of the magnetic clutch washers used before disassembly.

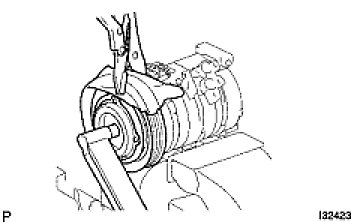

(f) Using vise pliers, hold the magnetic clutch hub and install the bolt.
Torque: 18 Nm (183 kgf-cm, 13 ft-lbf)
