Disassembly









AIR CONDITIONING: AIR CONDITIONING PANEL:

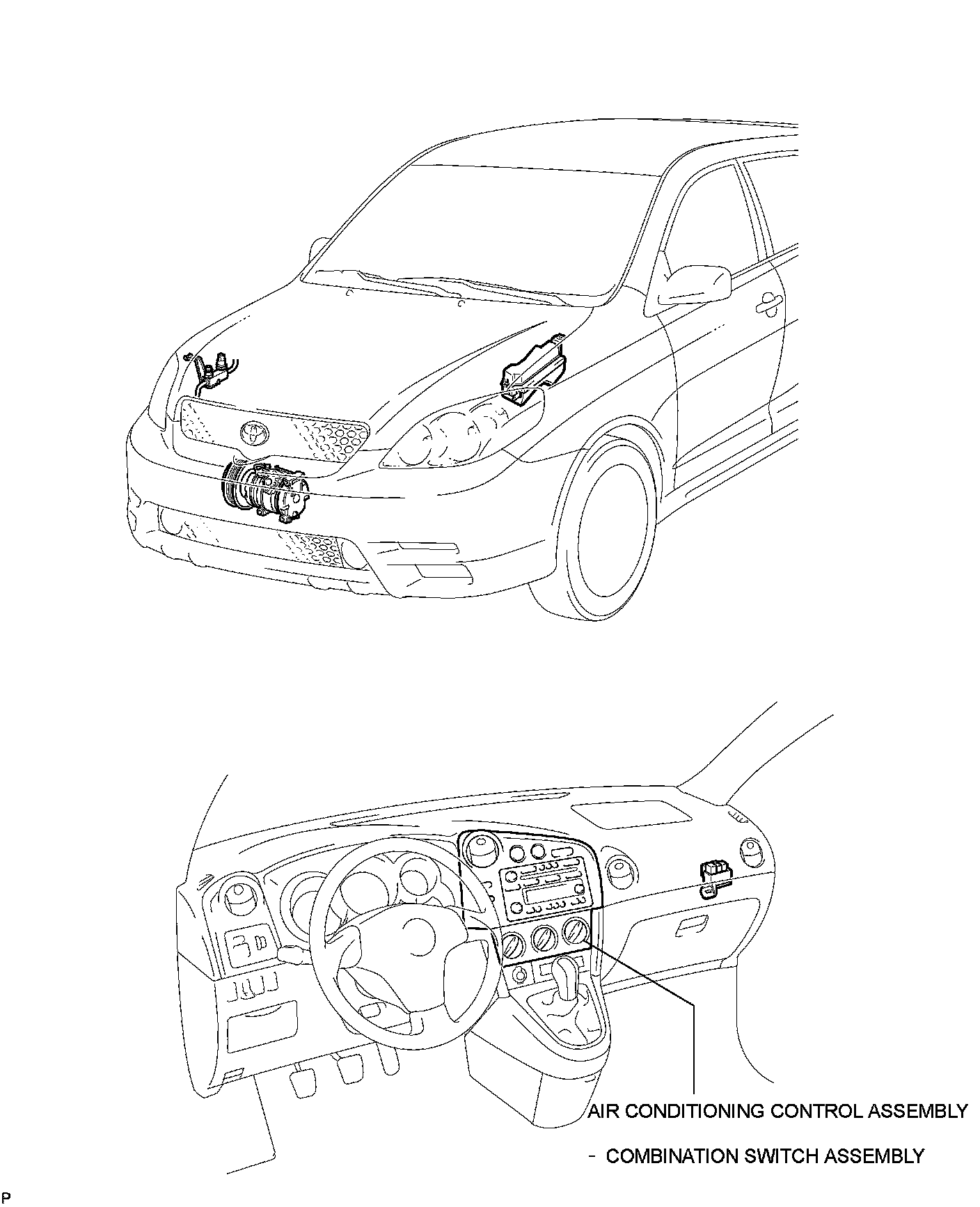

COMPONENTS






DISASSEMBLY

1. REMOVE AIR CONDITIONING CONTROL BULB
(a) Remove the 2 air conditioning control bulbs from the air conditioning control assembly.
