Removal

SUPPLEMENTAL RESTRAINT SYSTEM: CENTER AIRBAG SENSOR ASSEMBLY:

COMPONENTS






REMOVAL

1. PRECAUTION

CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing (Service Precautions).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER (Removal)

4. REMOVE INSTRUMENT CLUSTER FINISH PANEL (Removal)

5. REMOVE INSTRUMENT PANEL BOX (Removal)

6. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (Removal)

7. REMOVE CENTER AIRBAG SENSOR ASSEMBLY





(a) Disconnect the holder (with connectors).

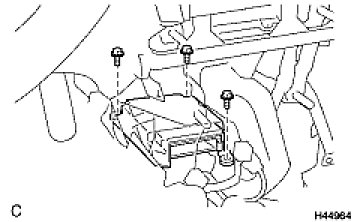

(b) Remove the 3 bolts and the center airbag sensor assembly.
