Intake Manifold

INTAKE MANIFOLD





Install the intake manifold and throttle body with the 2 brackets, 4 bolts and 2 nuts.
Torque: 30 Nm (306 kgf-cm, 22 ft-lbf)


THROTTLE BODY ASSEMBLY

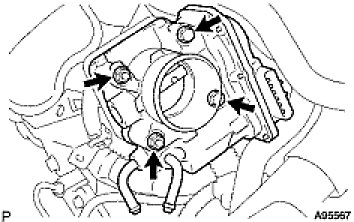

Install the throttle body with the 2 bolts and 2 nuts.
Torque: 9.0 Nm (90 kgf-cm, 80 in-lbf)
