Flex Plate

DRIVE PLATE & RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)

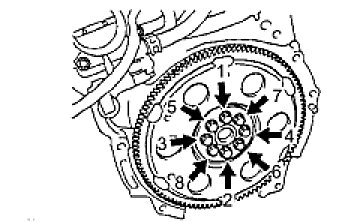

Using several steps, install and tighten the 8 bolts uniformly in the sequence shown in the illustration.
Torque 88 Nm (897 kgf-cm, 65 ft-lbf)
