Flywheel

FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)

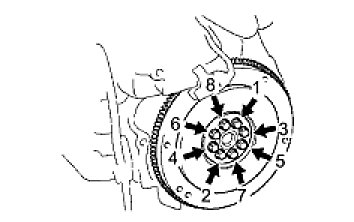

- Using several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration (Procedure "A").
Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)





- Mark the bolts with paint as shown in the illustration.
- Retighten the bolts 90° in the same sequence as procedure "A".
- Check that the paint marks of each bolt are at a 90° angle from the original position.
