Inspection Procedure

1. Disconnect the N8 ECU connector.
2. Disconnect the M16 display connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   STANDARD RESISTANCE REFERENCE CHART



   Tester Connection	Specified Condition
   N8-1 - M16-1	Below 1 Ω
   N8-2 - M16-2	Below 1 Ω
   N8-3 - M16-3	Below 1 Ω
   N8-1 - Body ground	10 kΩ or higher
   N8-2 - Body ground	10 kΩ or higher
   N8-3 - Body ground	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

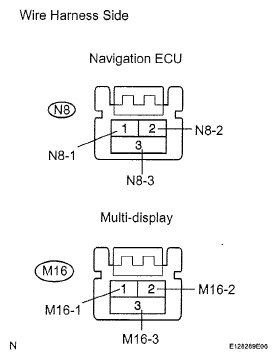

Fig 1: Identifying N8 ECU Connector And M16 Display Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN  PROBLEM SYMPTOMS TABLE
