System Diagram

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

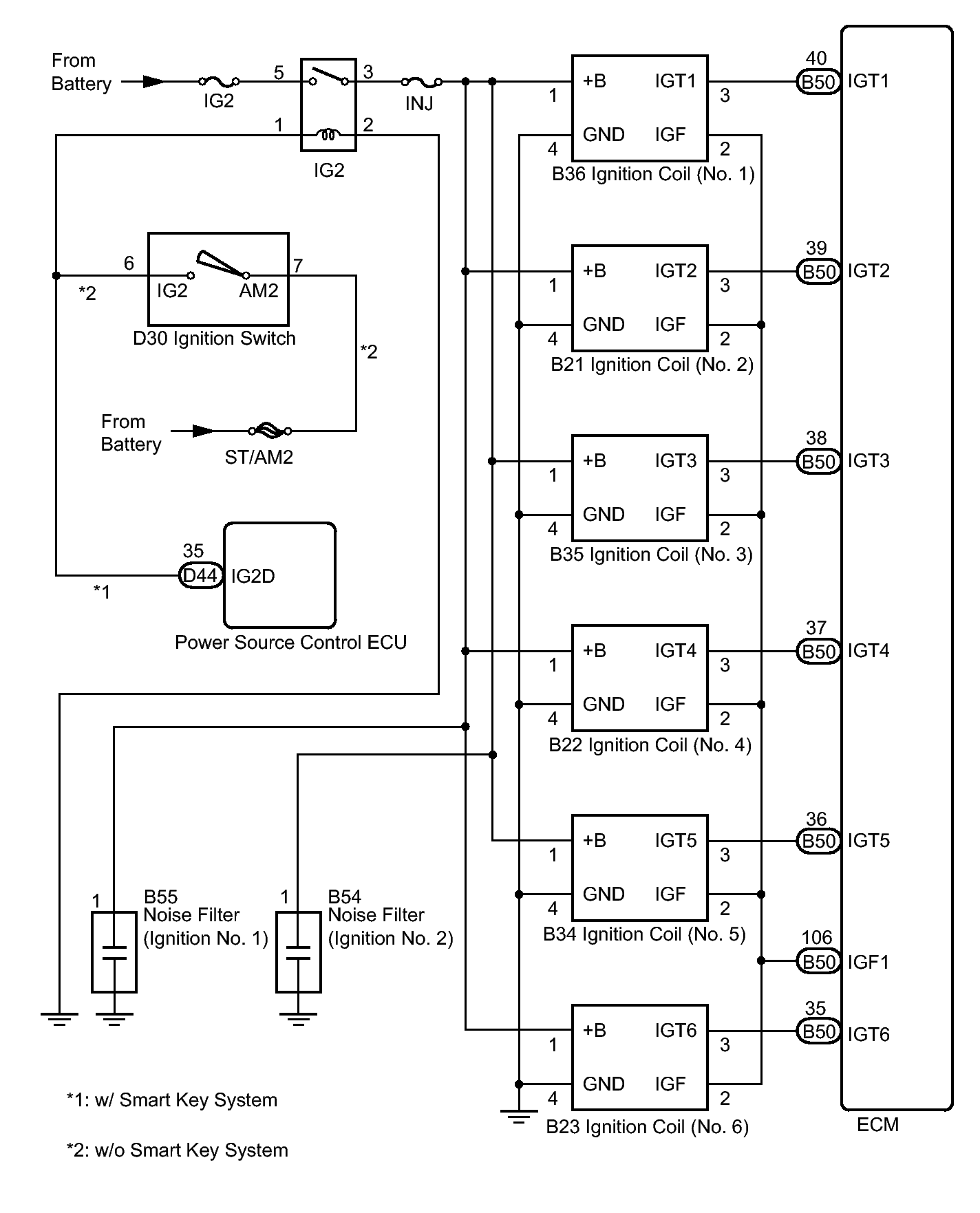

Fig 1: Ignition System Circuit Diagram
GTY297253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
