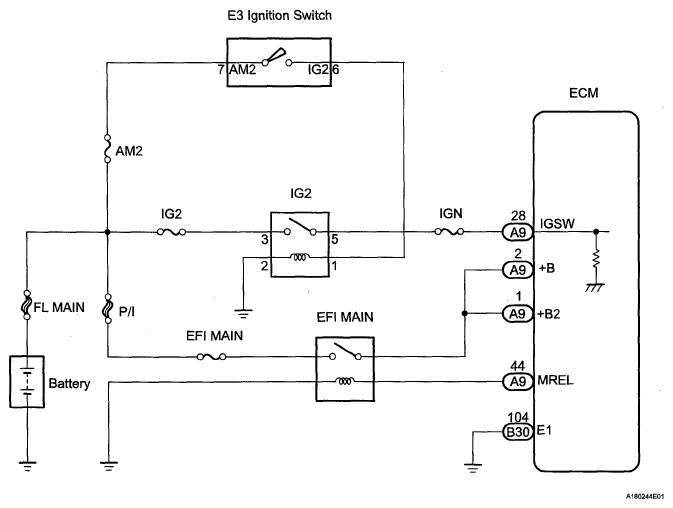

ECM Power Source Circuit: Wiring Diagram
Fig 1: ECM Power Source - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
