Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK STOP LIGHT SWITCH OPERATION
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the tester on.
    4. Select the following menu items: Chassis / ABS/VSC/ TRAC / Data List.

      DATA LIST: ABS

      ABS DATA LIST REFERENCE

      Tester Display Measurement Item/Range Normal Conditions
      Stop lamp SW Stop light switch / ON or OFF ON: Brake pedal depressed
      OFF: Brake pedal released
    5. Check that "Stop lamp SW" is turned ON and OFF when the brake pedal is depressed and released.

      OK:

      "Stop lamp SW" is turned ON and OFF in accordance with the operation of the brake pedal.

    NG:  Go to step  3

    OK: Go to next step

  2. CHECK SKID CONTROL ECU TERMINAL VOLTAGE (STP)
    1. Disconnect the skid control ECU connector.
      2. Fig 1: Identifying Skid Control ECU Connector Terminals
      G04832203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      A15-10 (STP) - Body ground Brake pedal depressed 8 to 14 V
      A15-10 (STP) - Body ground Brake pedal released Below 4.0 V

    NG:  Go to step  5

    OK: REPLACE BRAKE ACTUATOR (See  REMOVAL   )

  3. INSPECT FUSE (STOP)
    1. Remove the STOP fuse from the main body ECU.
      2. Fig 2: Identifying STOP Fuse
      G04832204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance.

      Standard resistance:

      Below 1 Ω

    NG: CHECK FOR SHORTS IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

    OK: Go to next step

  4. INSPECT STOP LIGHT SWITCH ASSEMBLY
    1. Disconnect the stop light switch connector.
      2. Fig 3: Identifying Stop Light Switch Assembly
      G04832205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      1-2 Switch pin released Below 1 Ω
      3-4 Switch pin released 10 kΩ or higher
      1-2 Switch pin pushed in 10 kΩ or higher
      3-4 Switch pin pushed in Below 1 Ω

      Result

      RESULT CHART

      Result Proceed to
      OK A
      NG (Hatchback) B
      NG (Sedan) C

    B: REPLACE STOP LIGHT SWITCH ASSEMBLY (for Hatchback)  (See REMOVAL )

    C: REPLACE STOP LAMP SWITCH ASSEMBLY (for Sedan)  (See REMOVAL )

    A: Go to next step

  5. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - STOP LIGHT SWITCH)
    1. Disconnect the skid control ECU connector.

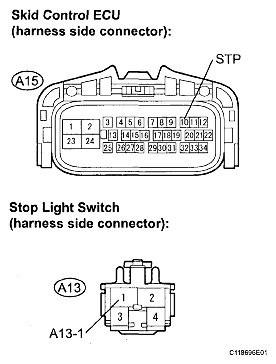

      2. Fig 4: Identifying Skid Control ECU Connector Terminals And Stop Light Switch Connector
      G04832206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the stop light switch connector.
    3. Measure the resistance.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      A15-10(STP) - A13-1 Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  6. RECONFIRM DTC
    1. Clear the DTC (See DTC CHECK / CLEAR  ).
    2. Check if the same DTC is output (See DTC CHECK / CLEAR  ).

      Result

      RESULT CHART

      Result Proceed to
      DTC output A
      DTC not output B

    B: END

    A: REPLACE BRAKE ACTUATOR (See  REMOVAL   )
