Customize Parameters
HINT:
The following items can be customized.
NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.
- CUSTOMIZING FUNCTION WITH TECHSTREAM
- POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Tilt & Telescopic
TILT & TELESCOPICDisplay (Item) Default Content Setting Autoaway / Return function ON ON/OFF of the auto away / return function ON/OFF - POWER DOOR LOCK CONTROL SYSTEM
Main Body
POWER DOOR LOCK CONTROL SYSTEMDisplay (Item) Default Content Setting Unlock Key Twice ON Function that unlocks only driver side door when driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice. For OFF setting, turning it once unlocks all doors. ON/OFF Auto lock ON Function that locks all doors when vehicle speed reaches a certain level. ON/OFF Auto Lock/Shift OFF Function that locks all doors when shift lever is moved other position from P with engine running and all doors closed ON/OFF Auto Unlock/Shift ON Function that unlocks all doors when shift lever is moved to P from any other position while the ignition switch to ON. ON/OFF All Unlock/Open-Close OFF Function that unlocks all doors when opening driver door within 10 seconds after turning the ignition switch ON. ON/OFF - WIRELESS DOOR LOCK CONTROL SYSTEM
Main Body
WIRELESS DOOR LOCK CONTROL SYSTEMDisplay (Item) Default Content Setting Wireless Control ON ON/OFF of wireless door lock function. ON/OFF Hazard Answer Back ON When LOCK switch on transmitter is pressed, all hazard warning lights illuminate once. When UNLOCK switch pressed, all hazard warning lights illuminate twice. ON/OFF Wireless Buzzer Resp ON Function that makes wireless buzzer sound for answer-back when transmitter LOCK / UNLOCK switch is pressed. ON/OFF Open Door Warning ON If door is not completely closed and transmitter LOCK switch is pressed, this function sounds a buzzer for 10 seconds. ON/OFF Unlock 2 Operation ON Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice. If setting is OFF, pressing unlock switch once makes all doors unlock. ON/OFF Panic Function ON This function operates the theft deterrent system when PANIC is pressed and held for 0.8 second or more. ON/OFF Auto Lock Time 60 seconds This function controls amount of time from unlocking doors to automatic re-locking function. 30 s/60 s/120 s Wireless Auto Look ON Function of automatically locking doors after unlocking doors with wireless key. ON/OFF - THEFT DETERRENT SYSTEM
Main Body
THEFT DETERRENT SYSTEMDisplay (Item) Default Content Setting Warning by Horn ON Function that allows the vehicle horns and theft deterrent horn to be used as warning device. ON/OFF Passive Mode (Security System) OFF Passive Mode is a function that switches the theft deterrent system from the arming preparation state to the armed state 30 seconds after the key is removed from the key cylinder and all doors, the engine hood and the luggage compartment door are closed, even if the doors are not locked by wireless or door key lock operation.
In Passive Mode, if the following operations are not performed within 14 seconds after a door is opened during armed state, the theft deterrent system will judge that condition as a theft and switch to the alarm sounding state.- Unlock any door by key or wireless operation
- Turn the ignition switch to ON
- Open the luggage compartment door by key or wireless operation
ON/OFF Warning by Glass Broken Sensor* ON Function that turns glass breakage sensor ON/OFF.
This function is only effective for vehicles with glass breakage sensor.ON/OFF Entry Delay 14s Function that changes entry delay time (time before warning starts) for Passive Mode 0 s/14 s/30 s HINT:
*: w/Glass Breakage Sensor - LIGHTING SYSTEM (INTERIOR)
Main Body
LIGHTING SYSTEM (INTERIOR)Display (Item) Default Content Setting Lighting Time 15 s Changes illumination duration after door closure (It will quickly fade out when turning ignition switch ON) 7.5 s/15 s/30 s I/L When ACC OFF ON Illuminates light when ignition switch turned to ACC→OFF (Room light illuminated when interior light switch set to DOOR) ON/OFF I/L ON W/DOOR Key Unlock ON Function to light up room light when unlocking with door key cylinder (Room light illuminated when interior light switch set to DOOR) ON/OFF Disp Ex OFF Sen NORMAL Changes brightness when canceling lowering lights such as combination meter indicator light, A/C indicator light, and clock light*3 LIGHT2 / LIGHT1 / NORMAL / DARK1 /DARK2 Disp Ex ON Sen NORMAL Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light*2 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2 Sensitivity NORMAL Function to adjust sensitivity of lighting illumination*1 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2 HINT:
*1: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.*1
*2
*3
- METER / GAUGE SYSTEM
Warning
METER / GAUGE SYSTEMDisplay (Item) Default Content Setting Key Remind Volume Large To change volume of key reminder buzzer Large / Small / Medium Key Remind Sound Slow To change frequency of key reminder buzzer Normal / Slow / Fast Driver Side Seatbelt Warning Buzzer ON To change setting of driver side seat belt warning buzzer ON/OFF Front Passenger Side Seatbelt Warning Buzzer ON To change setting of passenger side seat belt warning buzzer ON/OFF - SEAT BELT WARNING SYSTEM
Warning
SEAT BELT WARNING SYSTEMDisplay (Item) Default Content Setting Driver Side Seatbelt Warning Buzzer ON Seat belt warning buzzer ON/OFF setting ON: Driver buzzer ON
OFF: Driver buzzer OFFFront Passenger Side Seatbelt Warning Buzzer ON Seat belt warning buzzer ON/OFF setting ON: Passenger buzzer ON
OFF: Passenger buzzer OFF - AIR CONDITIONING SYSTEM
Air Conditioner
AIR CONDITIONING SYSTEMDisplay (Item) Default Content Setting Set Temperature Shift Normal Function to control the shifted temperature in relation to the displayed temperature +2C/+1 C/Normal M C/-2C Compressor/Air Inlet DEF Operation Link Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C is OFF Normal / Link Compressor Mode Automatic Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF Manual / Automatic Air Inlet Mode Automatic In case of turning the A/C ON to cool down the cabin quickly, this is the function to change the mode automatically to RECIRCULATION mode Manual / Automatic Foot/DEF Auto Mode ON Function to turn the airflow from FOOT / DEF ON automatically when AUTO MODE is ON OFF/ON Foot/DEF Autotic Blow Up Function ON Function to change the blower level automatically when the defroster is ON OFF/ON Ambient Temperature Shift Normal Function to control the shifted ambient temperature in relation to the displayed ambient temperature +3 C / +2 C / +1 C / Normal / -1 C / -2 C / -3 C - POWER WINDOW CONTROL SYSTEM
Power Window
POWER WINDOW CONTROL SYSTEMDisplay (Item) Default Content Setting Door Key P/W Up ON Function that raises the driver and passenger power windows when, with the ignition switch off, a key is used to hold the driver door key cylinder to the lock position for more than 2.3 seconds. ON, OFF Door Key P/W Down ON Function that lowers the driver and passenger power windows when, with the ignition switch off, a key is used to hold the driver door key cylinder to the unlock position for more than 2.3 seconds. ON, OFF Door Key Linked Back P/W UP AVAIL Function that raises the back door power window when, with the ignition switch off, a key is used to hold the driver door key cylinder to the lock position for more than 0.7 seconds. NOT AVL, AVAIL Door Key Linked Back P/W DOWN AVAIL Function that lowers the back door power windows when, with the ignition switch off, a key is used to hold the driver door key cylinder to the unlock position for more than 0.7 seconds. NOT AVL, AVAIL - SLIDING ROOF SYSTEM
Sliding Roof
SLIDING ROOF SYSTEMDisplay (Item) Default Content Setting Door Key Related Open ON Function to manually open the sliding roof linked with power window by holding the driver door key in the unlock position for 3 seconds or more when the ignition switch is off. ON/OFF Door Key Related Close ON Function to manually close the sliding roof linked with power window by holding the driver door key in the lock position for 3 seconds or more when ignition switch is off. ON/OFF Door Key Related Operation SLIDE Function to select either tilt up or slide open for the manual sliding roof operation linked with power window, which is activated by holding the driver door key in the unlock position for 3 seconds or more when the ignition switch is off. TILT / SLIDE - POWER BACK DOOR SYSTEM
Power Back Door System
POWER BACK DOOR SYSTEMDisplay (Item) Default Content Setting PBD SW Operation 0.8 s Function that turns power back door closer switch ON when switch is pushed once or held down for 0.8 sec. 0.8 s / ON PBD Buzzer ON This function makes the power back door buzzer sound when power back door is operating ON/OFF Wirels PBD SW Operation 0.8 s Function that operates power back door when transmitter switch is pressed in specified way 1 Oper/2Oper/0.8s/OFF/1 Motion - WIPER AND WASHER SYSTEM
Wiper
WIPER AND WASHER SYSTEMDisplay (Item) Default Content Setting Linked Rear Wiper Washer AVAIL Function to make the rear wiper run automatically after the washer function is used. NOT AVAIL/AVAIL Rewipe Function AVAIL Function to make the rear wiper run once automatically a certain amount of time after the washer function is completed, to prevent the dripping of washing fluid. NOT AVAIL/AVAIL - LIGHTING SYSTEM (EXTERIOR)
Light Control
LIGHTING SYSTEM (EXTERIOR)Display (Item) Default Content Setting Light Auto OFF Delay 30 s Function to continue illuminating headlight for certain period of time after closing all doors with ignition switch turned from ON to OFF under condition that light control switch is at HEAD or AUTO with the headlight ON OFF / 30 S / 60 s / 90 s Sensitivity NORMAL Function to adjust sensitivity of lighting illumination*1 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2 HINT:
*1: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.*1
Mirror ECU
MIRROR ECU REFERENCEDisplay (Item) Default Content Setting Foot Light 30 s Changes illumination duration after door closure OFF/7.5 s/15 s/30 s
- POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
- CUSTOMIZING FUNCTION WITH MULTI-INFORMATION DISPLAY (w/Multi-information Display)

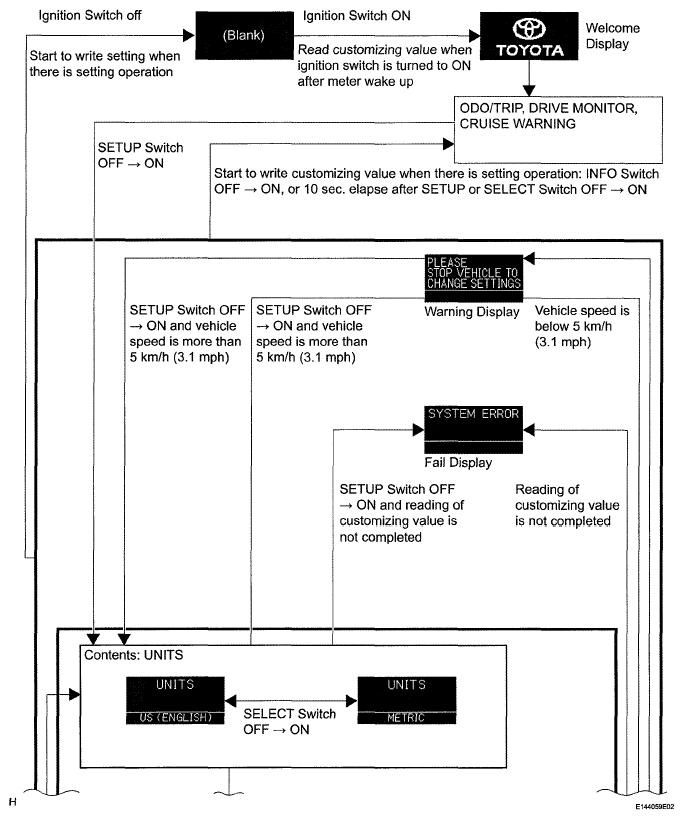

- Using the SETUP switch and SELECT switch, the following functions can be customized through the multi-information display. Refer to the illustrations
below (Fig 5-Fig 8).
- Unit setting
- Wireless door lock control system (answer-back function, automatic lock function, 2-step unlock function)
- Power door lock control system (automatic door lock function, automatic door unlock function)
- Lighting system (auto light turn off function)
- Default setting (customize setting cancel function)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
*: When setting change operation is performed by SELECT switch, writing of customized value must be performed.
- Using the SETUP switch and SELECT switch, the following functions can be customized through the multi-information display. Refer to the illustrations
below (Fig 5-Fig 8).
