Remote Up / Down Function Does Not Operate: Wiring Diagram

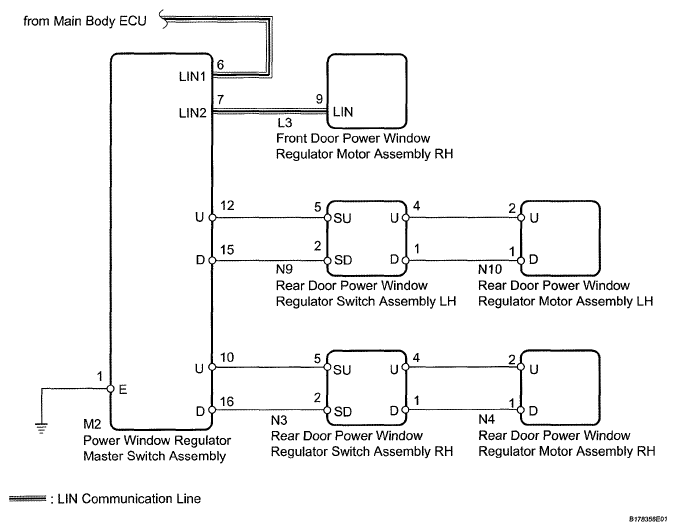

Fig 1: Remote Up / Down Function Does Not Operate Wiring Diagram
G05655791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
