System Diagram

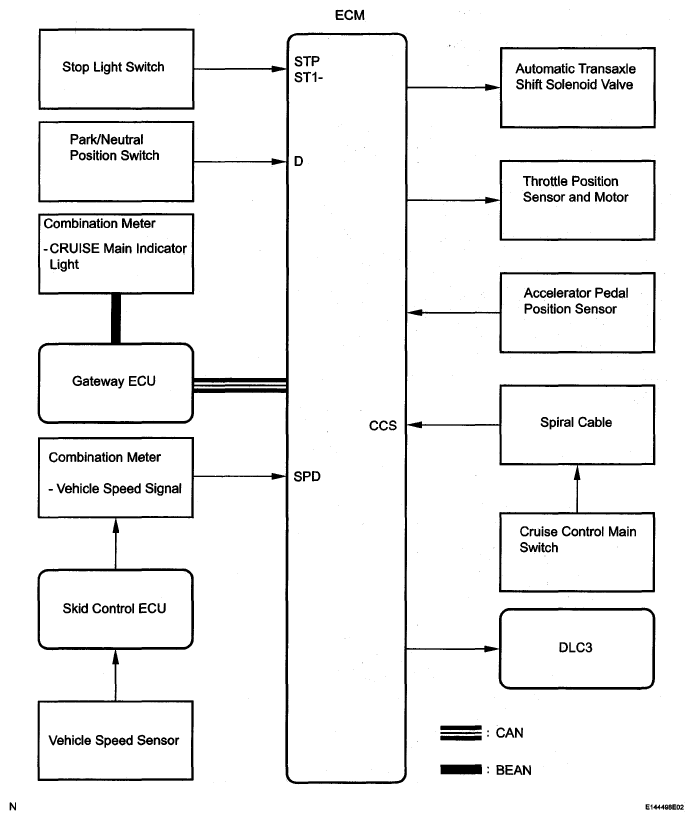

Fig 1: Cruise Control System Diagram
G05140592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table:

COMMUNICATION CHART

Sender Receiver Signal Line
ECM Gateway ECU CRUISE main indicator operation signal CAN
Gateway ECU Combination meter CRUISE main indicator operation signal BEAN
