EVAP System: Wiring Diagram

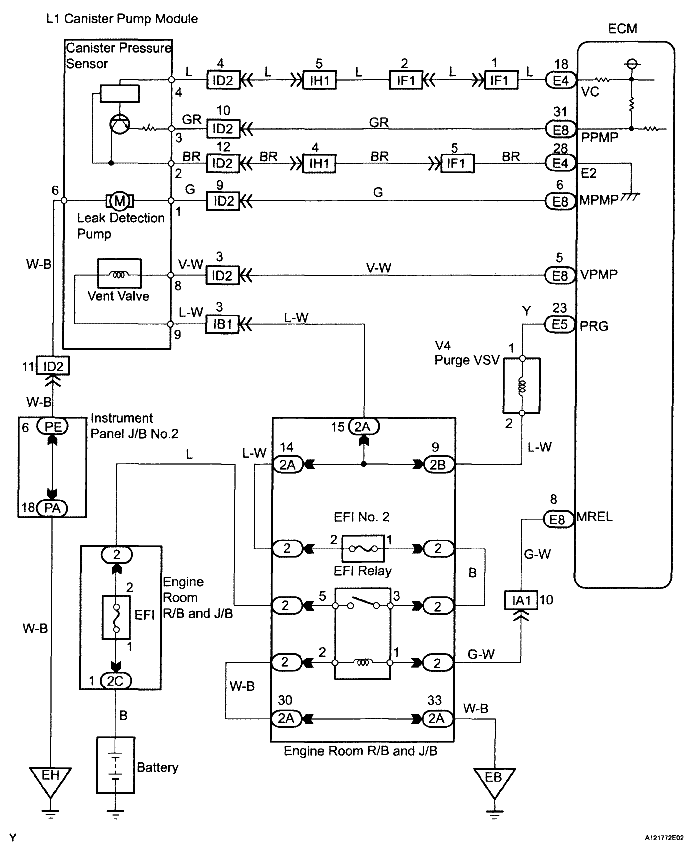

Fig 1: Evaporative Emission Control System Pressure Sensor / Switch - Wiring Diagram
G05198210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
