Crankshaft Position Sensor: Components

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
G05553881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

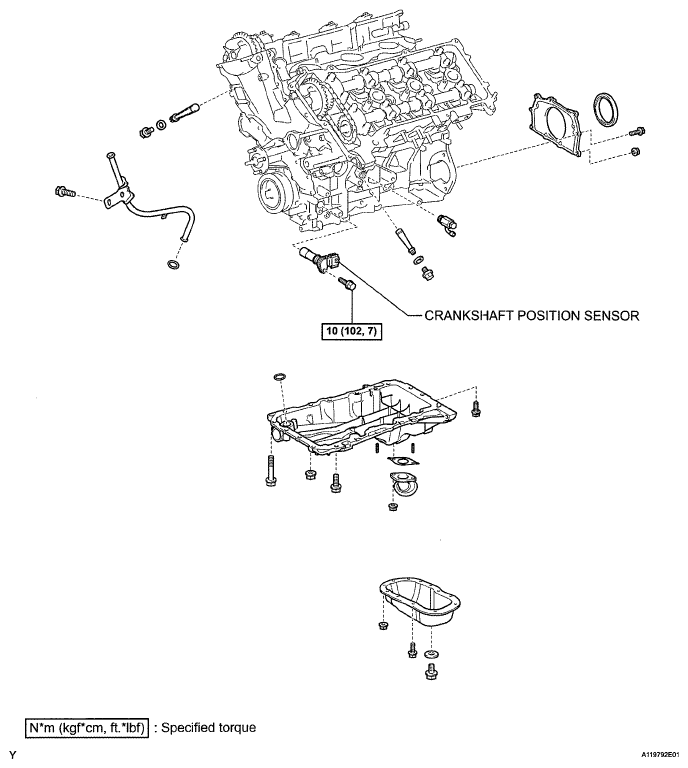

Fig 2: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
G05553882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
