Knock Sensor: Components

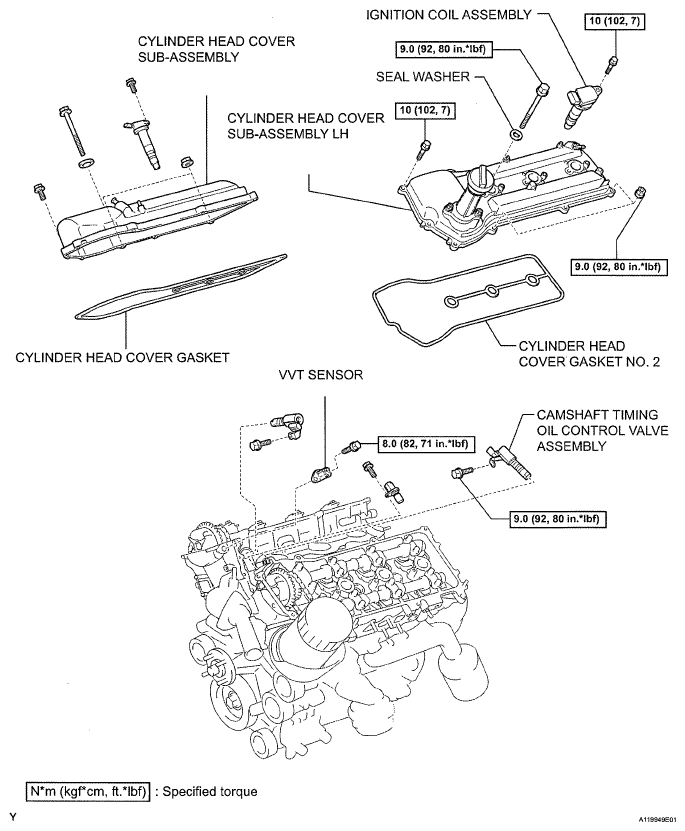

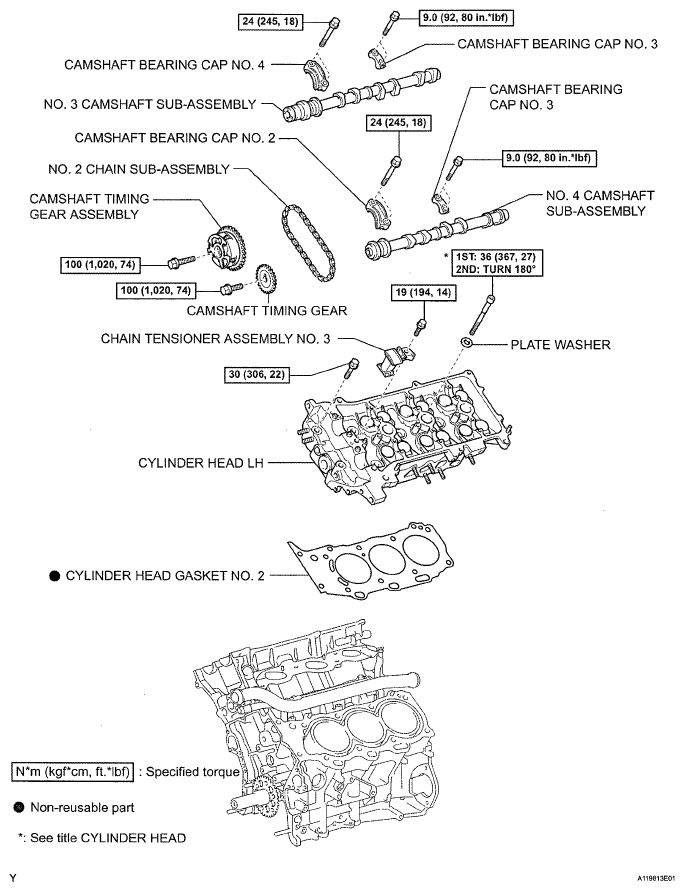

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

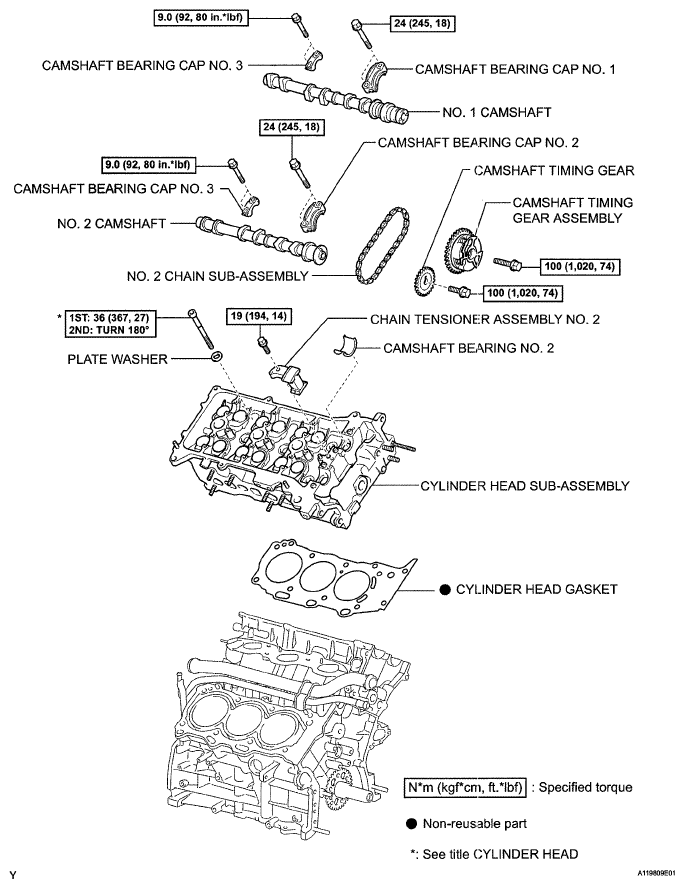

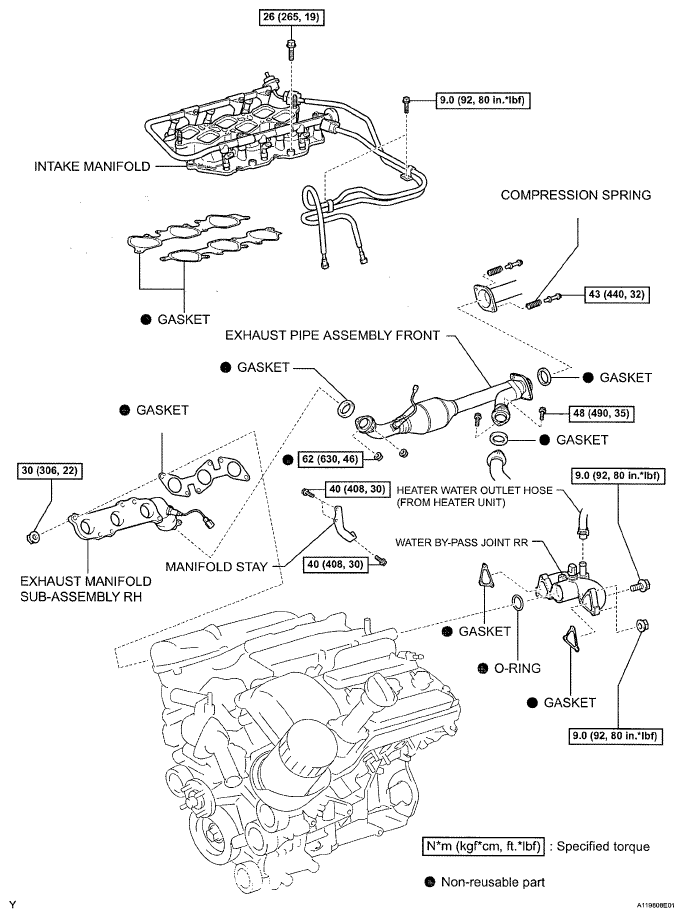

Fig 2: Identifying Knock Sensor Replacement Components With Torque Specifications (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

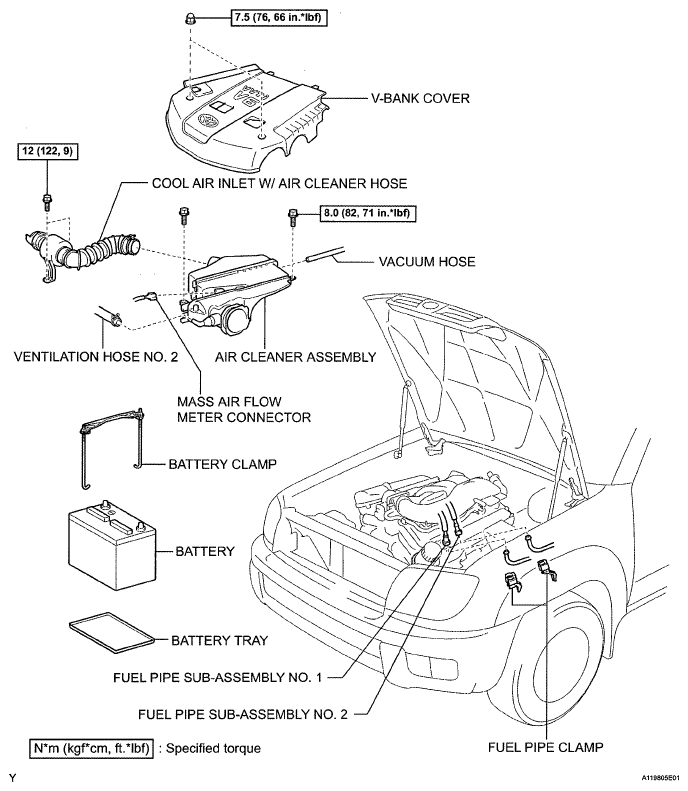

Fig 3: Identifying Knock Sensor Replacement Components With Torque Specifications (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

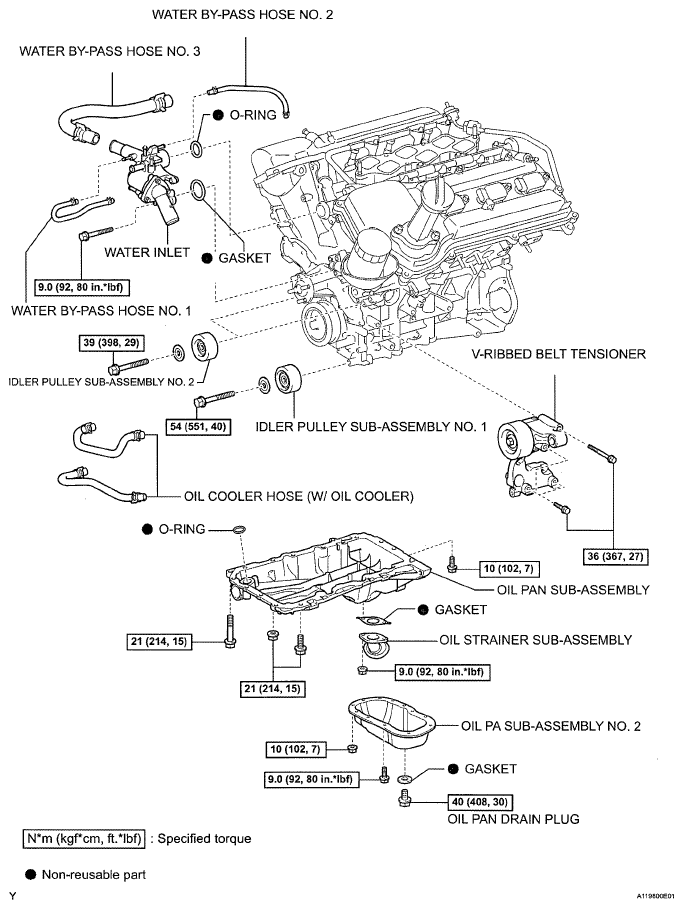

Fig 4: Identifying Knock Sensor Replacement Components With Torque Specifications (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

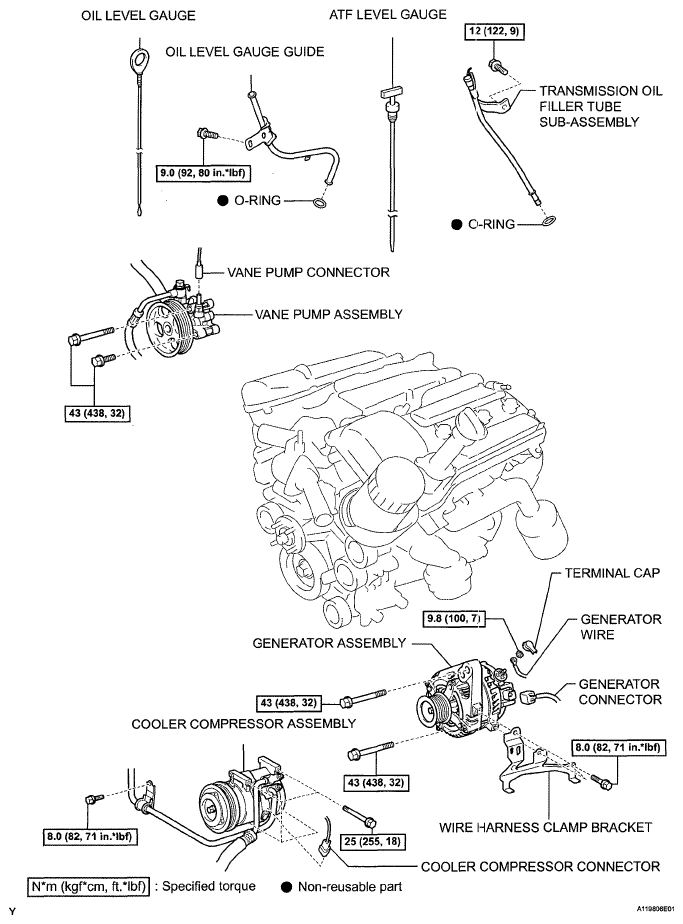

Fig 5: Identifying Knock Sensor Replacement Components With Torque Specifications (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

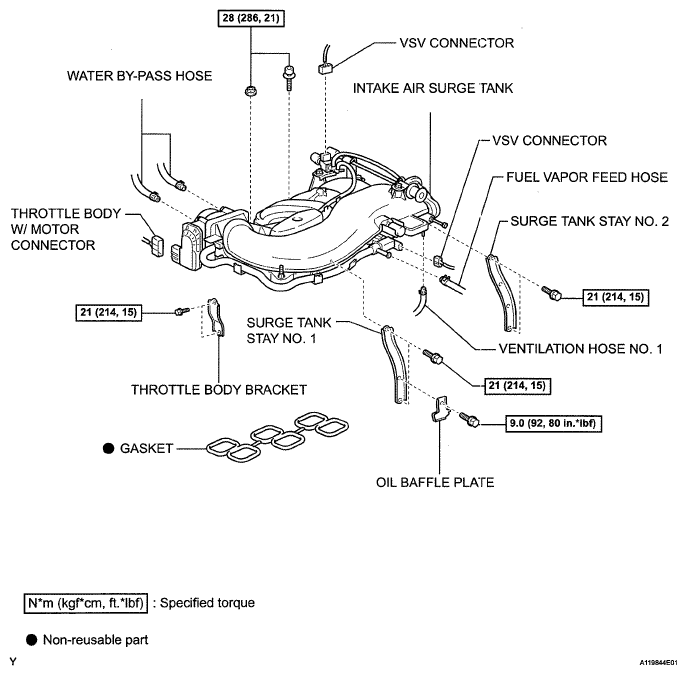

Fig 6: Identifying Knock Sensor Replacement Components With Torque Specifications (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

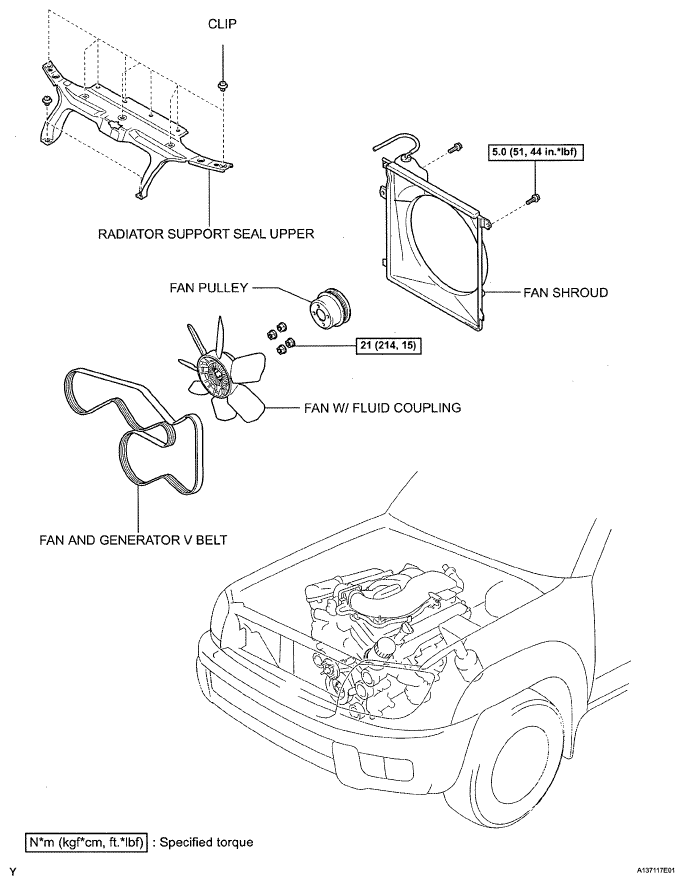

Fig 7: Identifying Knock Sensor Replacement Components With Torque Specifications (7 Of 10)

Fig 8: Identifying Knock Sensor Replacement Components With Torque Specifications (8 Of 10)

Fig 9: Identifying Knock Sensor Replacement Components With Torque Specifications (9 Of 10)

Fig 10: Identifying Knock Sensor Replacement Components With Torque Specifications (10 Of 10)
