System Diagram: Notes

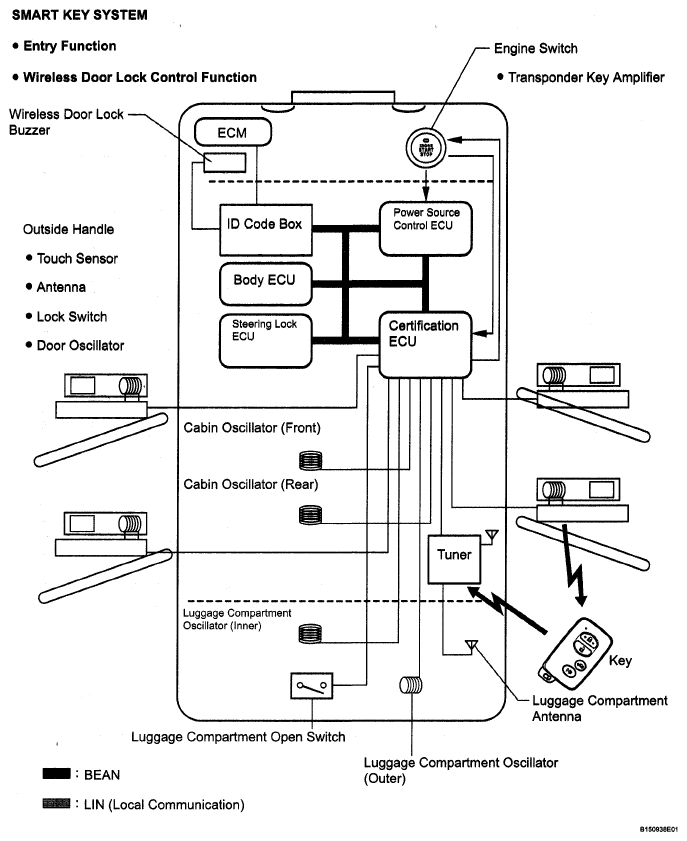

Fig 1: Smart Key System Diagram (1 Of 2)
G05006002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

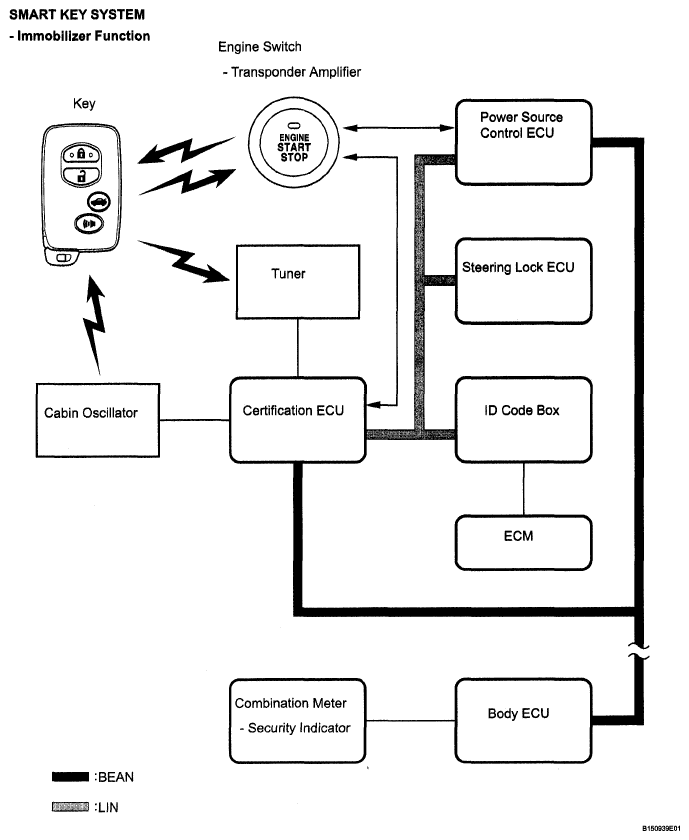

Fig 2: Smart Key System Diagram (2 Of 2)
G05006003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
