Rear Shock Absorber With Coil Spring: Components

Fig 1: Identifying Rear Shock Absorber With Coil Spring Components (1 Of 2)
G05001271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

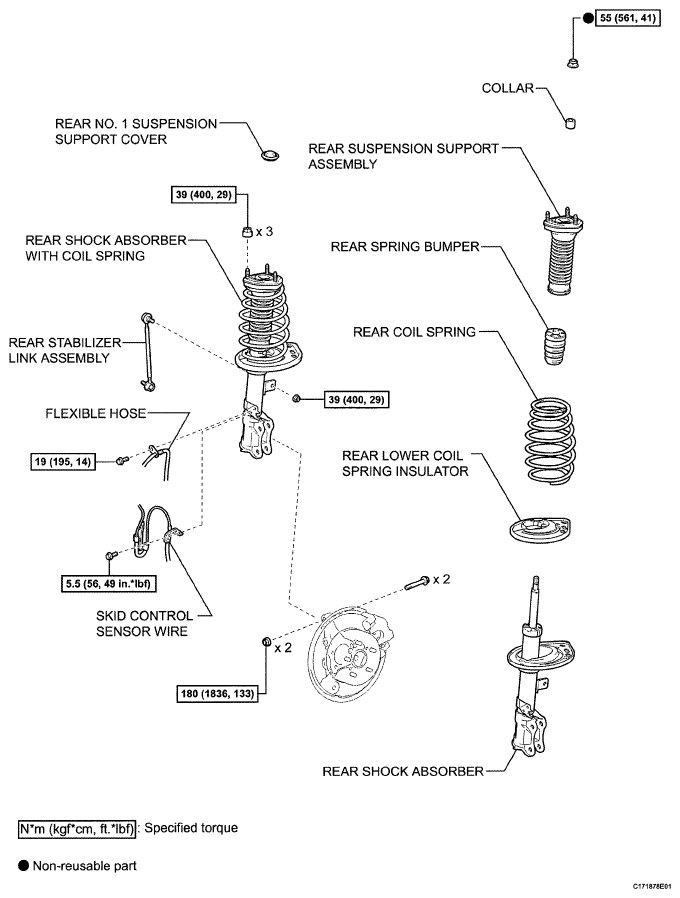

Fig 2: Identifying Rear Shock Absorber With Coil Spring Components (2 Of 2)
G05406448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
