System Diagram

WARNING: This page is about a different variant/trim than selected.

Without Smart Key System:

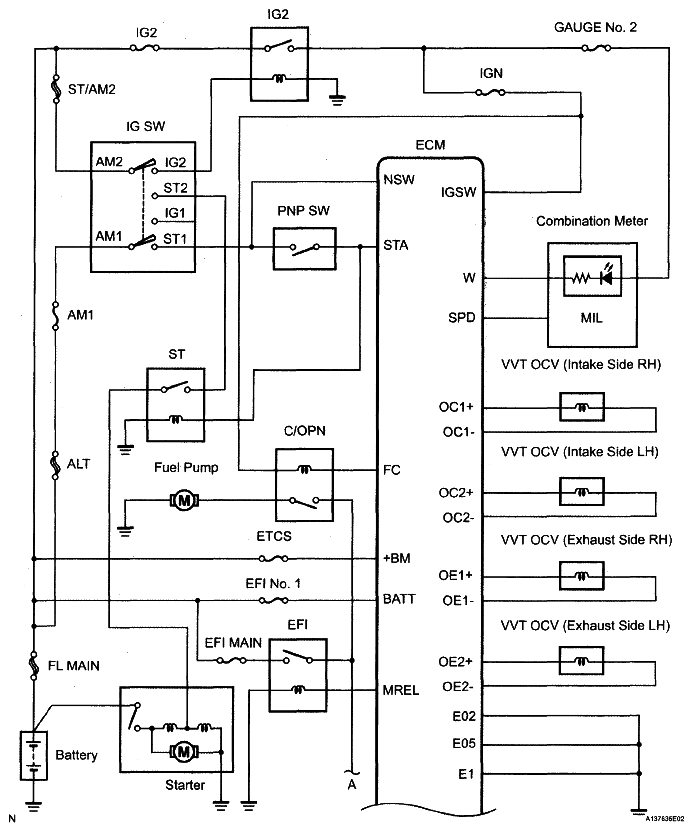

Fig 1: SFI System Diagram - Without Smart Key (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

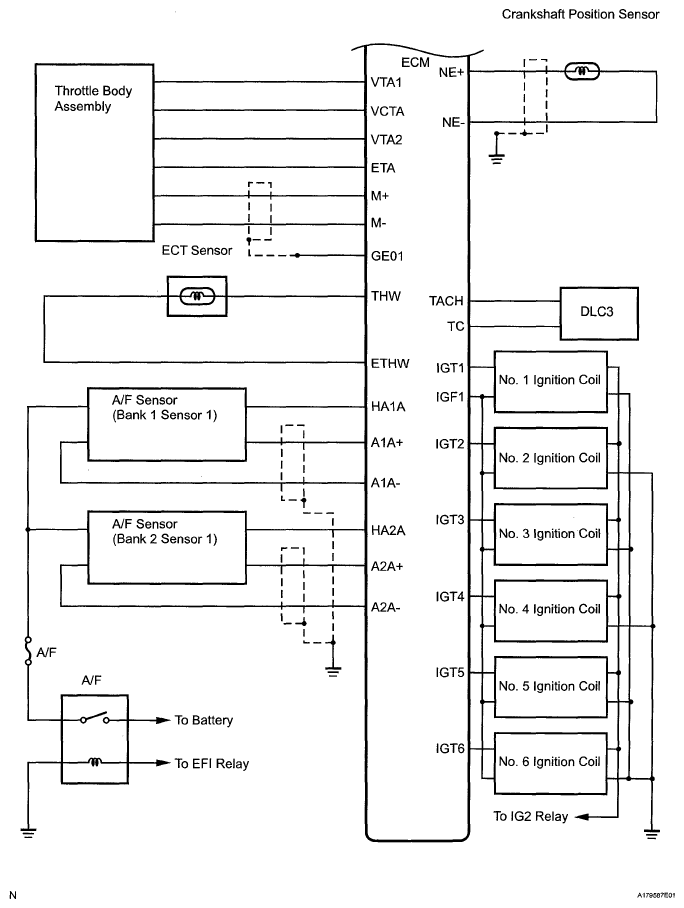

Fig 2: SFI System Diagram - Without Smart Key (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: SFI System Diagram - Without Smart Key (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: SFI System Diagram - Without Smart Key (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: SFI System Diagram - Without Smart Key (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
With Smart Key System:

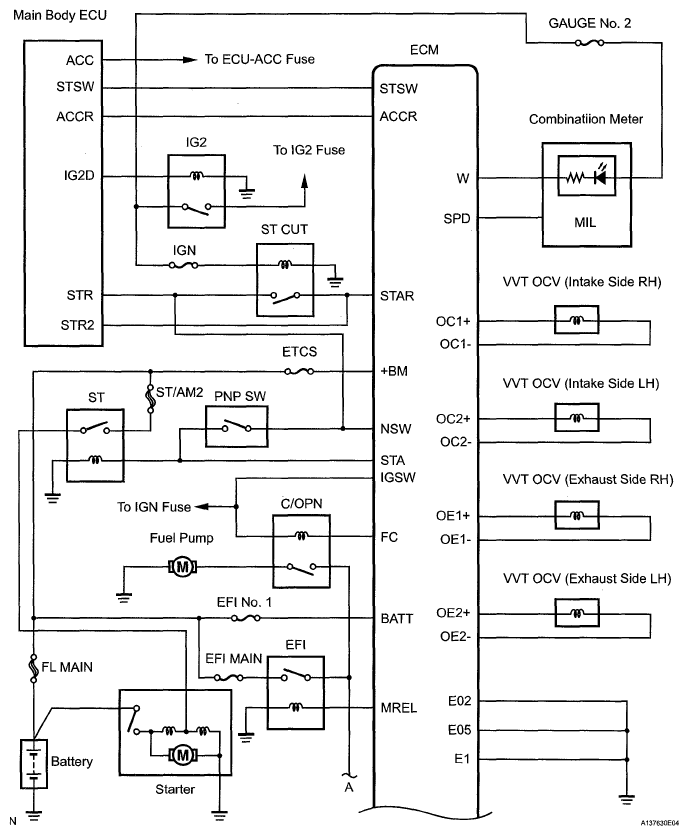

Fig 6: SFI System Diagram - With Smart Key (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

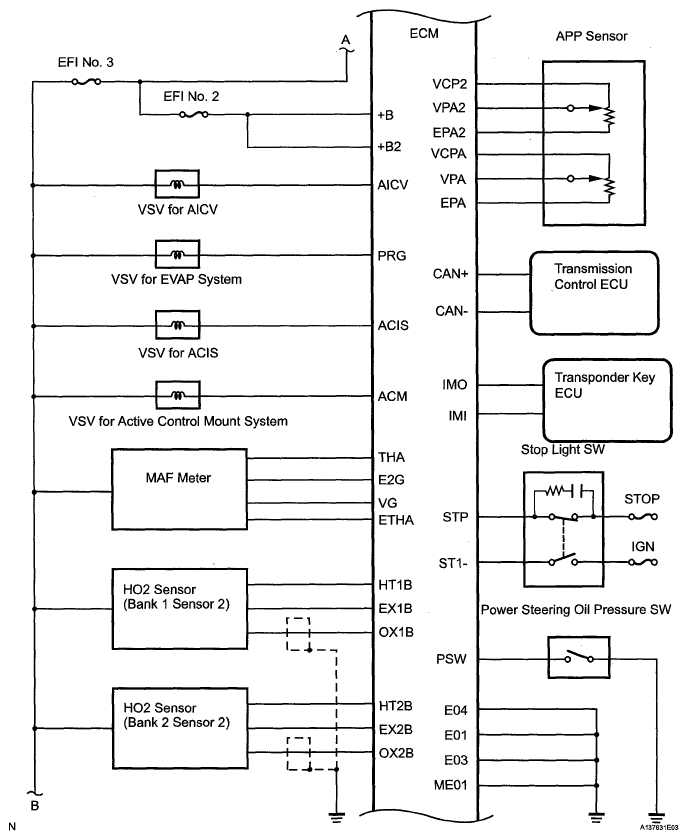

Fig 7: SFI System Diagram - With Smart Key (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: SFI System Diagram - With Smart Key (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

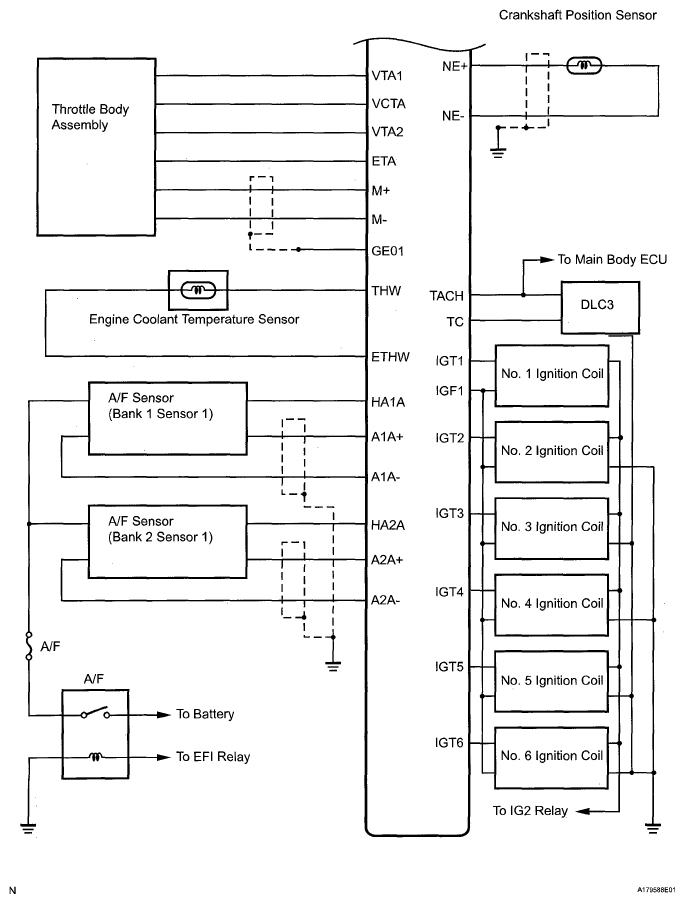

Fig 9: SFI System Diagram - With Smart Key (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: SFI System Diagram - With Smart Key (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
