Throttle Body: Components

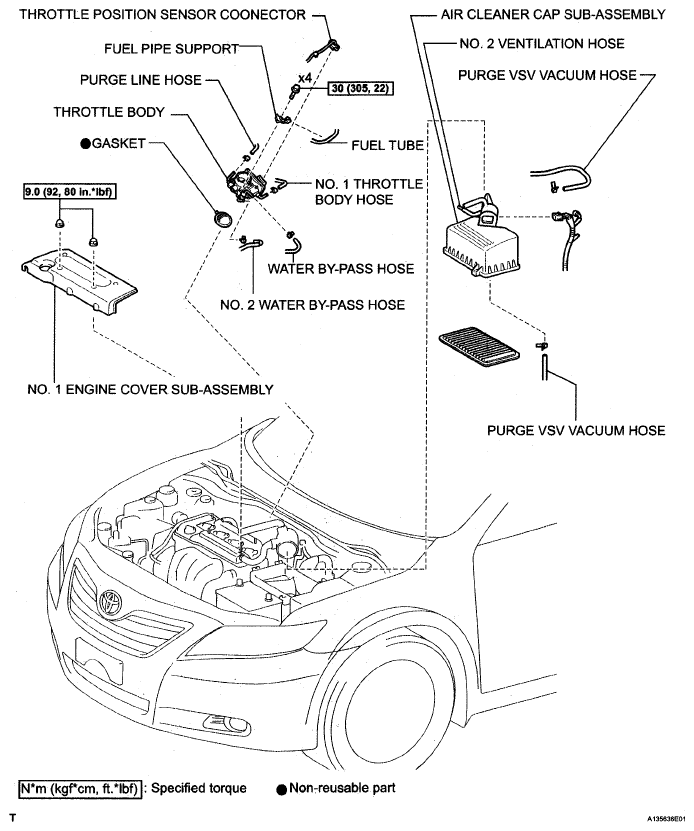

Fig 1: Throttle Body Replacement Components W/Torque Specifications
G04973368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
