Confirmation Driving Pattern

HINT:

Performing this confirmation pattern will activate the mass air flow meter performance monitor.

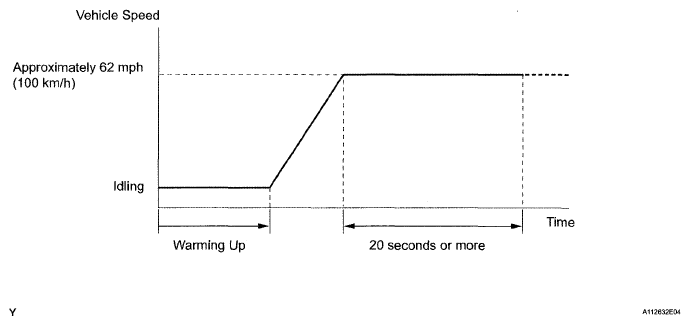

Fig 1: Vehicle Speed Driving Pattern

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the tester on.
4. Clear the DTCs (See DTC CHECK/CLEAR ).
5. Put the engine in inspection mode (See INSPECTION MODE PROCEDURE ).
6. Warm it up until the engine coolant temperature reaches 70°C (158°F) or higher.
7. Drive the vehicle at approximately 62 mph (100 km/h) for 20 seconds or more.
8. On the tester, select the following menu items: Powertrain / Engine / Trouble Code / Pending and check if any DTCs (any pending DTCs) are set.
