Center Power Outlet Socket: Components

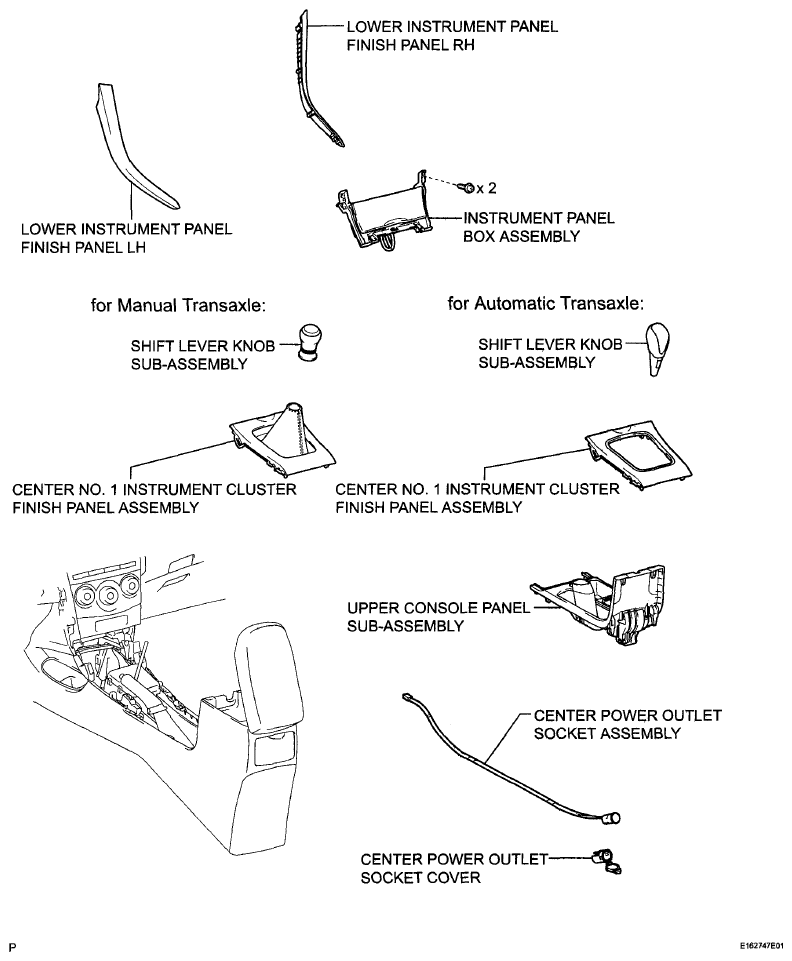

Fig 1: Identifying Center Power Outlet Socket Components
G06016582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
