Fuel Injector: Components

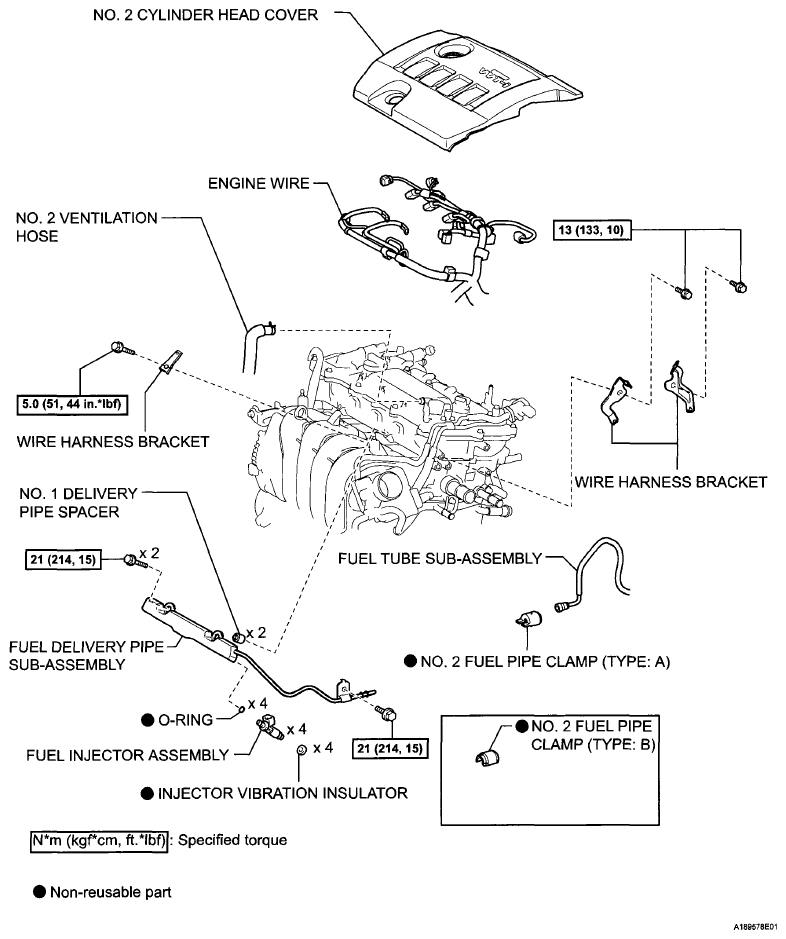

Fig 1: Fuel Injector Replacement Components With Torque Specifications
G06009855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
