Toyota
>>
2009
>>
Corolla Base, 1.8 L, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Engine Fuel System (2ZR-FE)
>>
Fuel System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

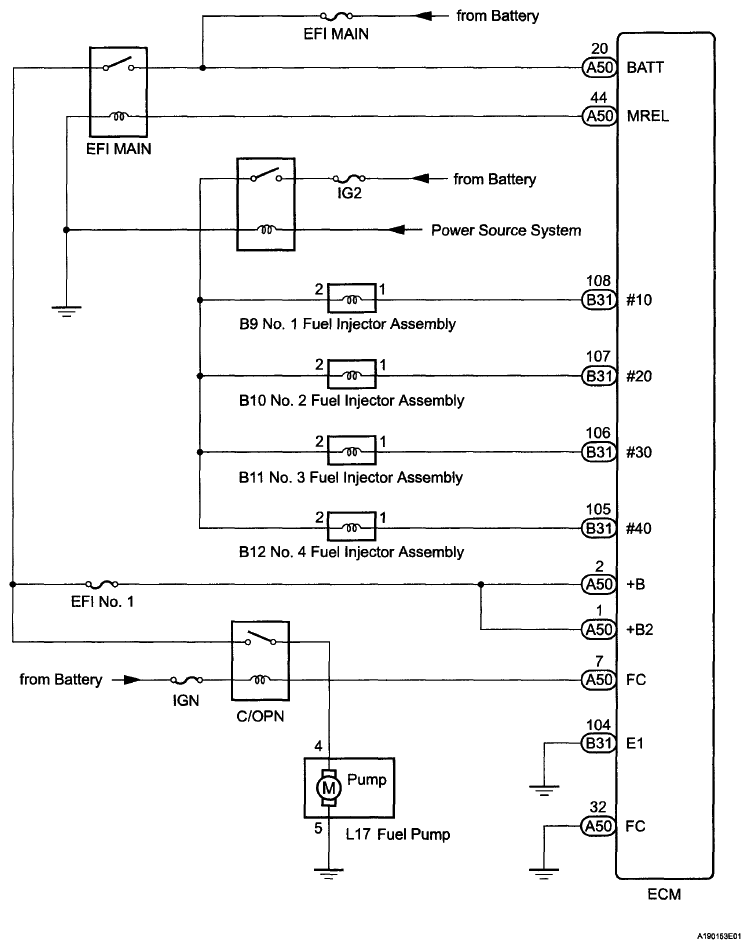

Fig 1: Fuel System Diagram
