System Diagram

WARNING: This page is about a different variant/trim than selected.

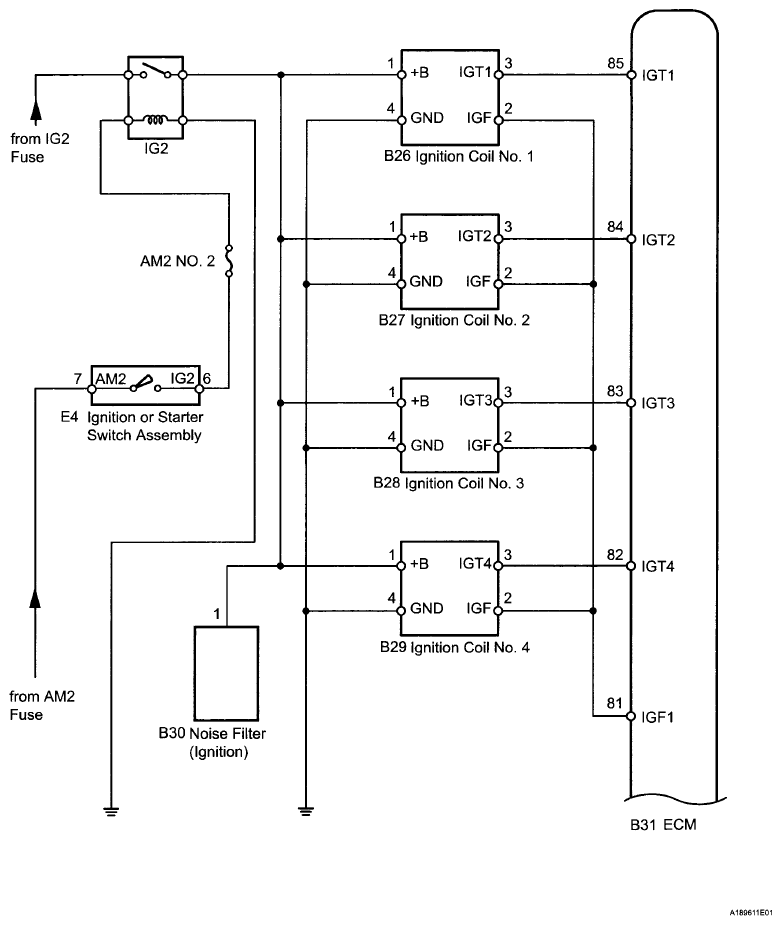

Fig 1: Ignition System Diagram (1 Of 2)
G06007574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

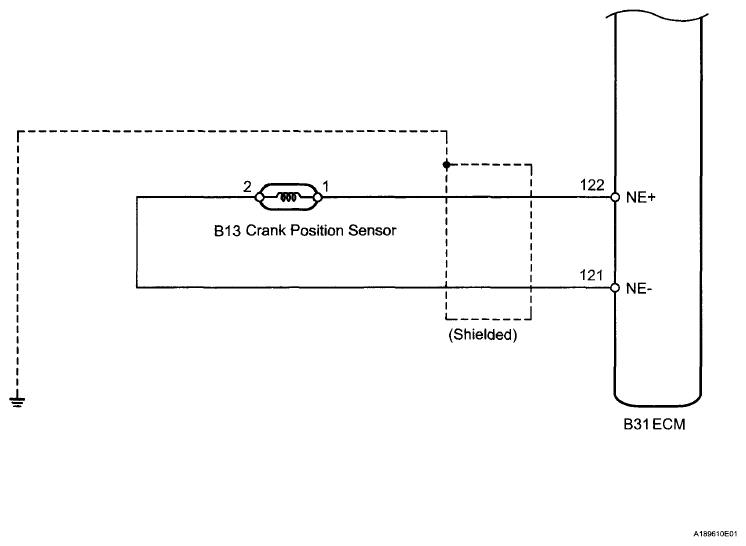

Fig 2: Ignition System Diagram (2 Of 2)
G06007575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
