Throttle Body: Components

WARNING: This page is about a different variant/trim than selected.

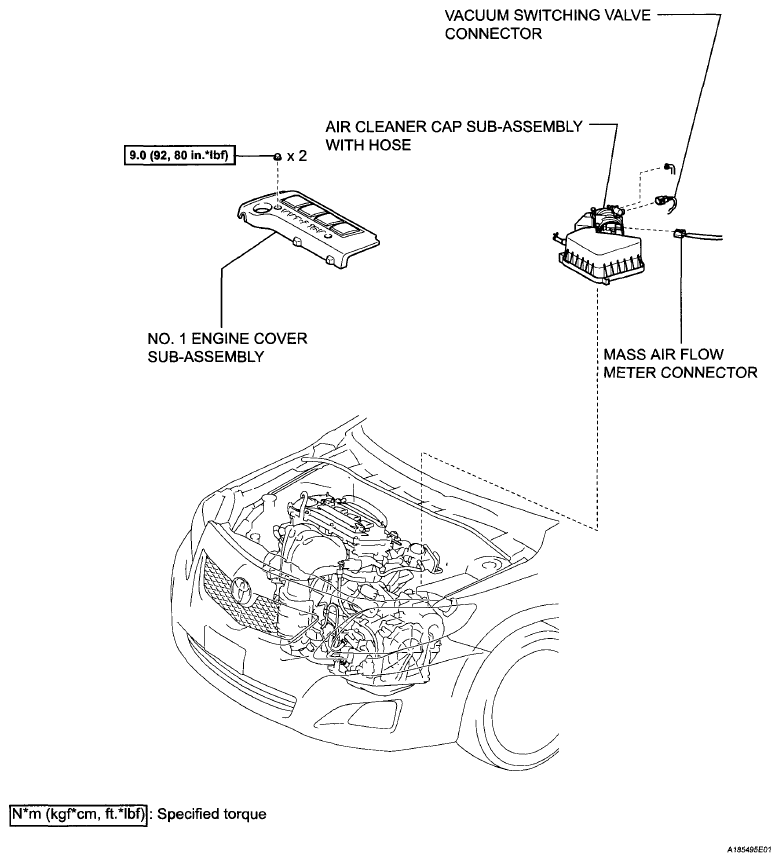

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 Of 2)
G06007593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

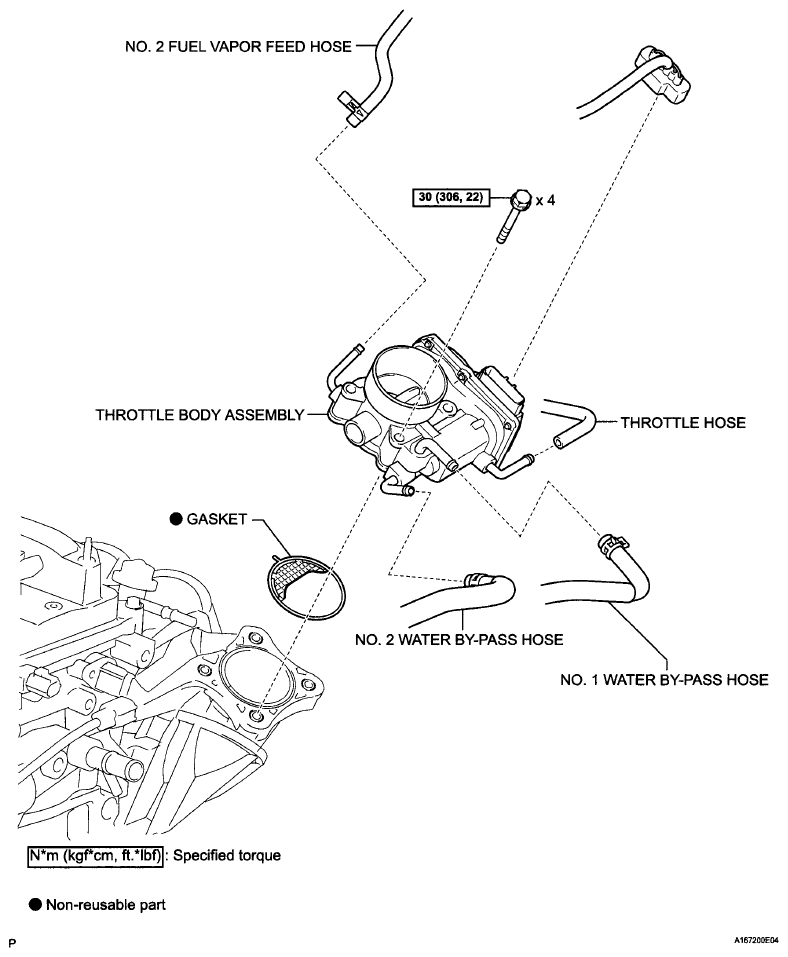

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
G06007594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
