Power Seat Switch: Components

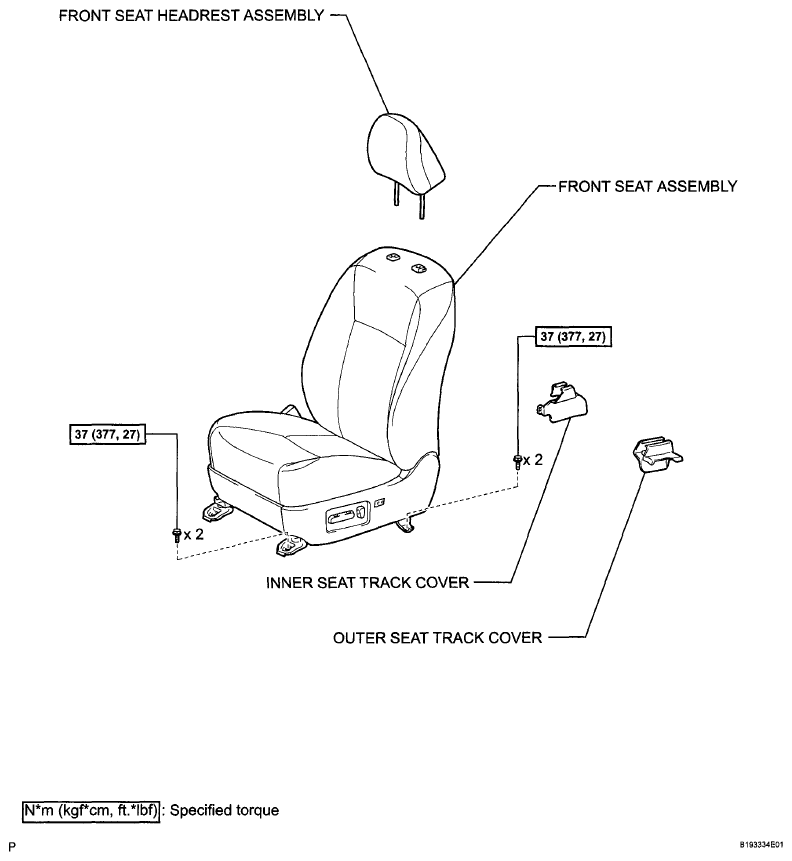

Fig 1: Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications (1 Of 4)
G06015050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

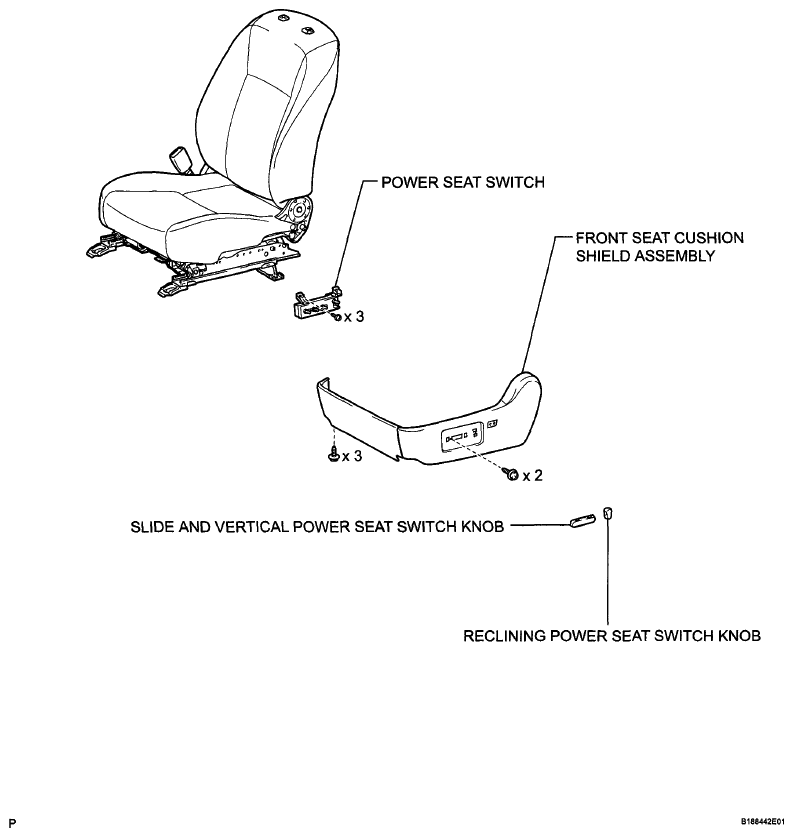

Fig 2: Power Seat Switch Replacement Components With Torque Specifications (2 Of 2)
G06015198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
