STEERING ANGLE SENSOR (w/ VSC): Components

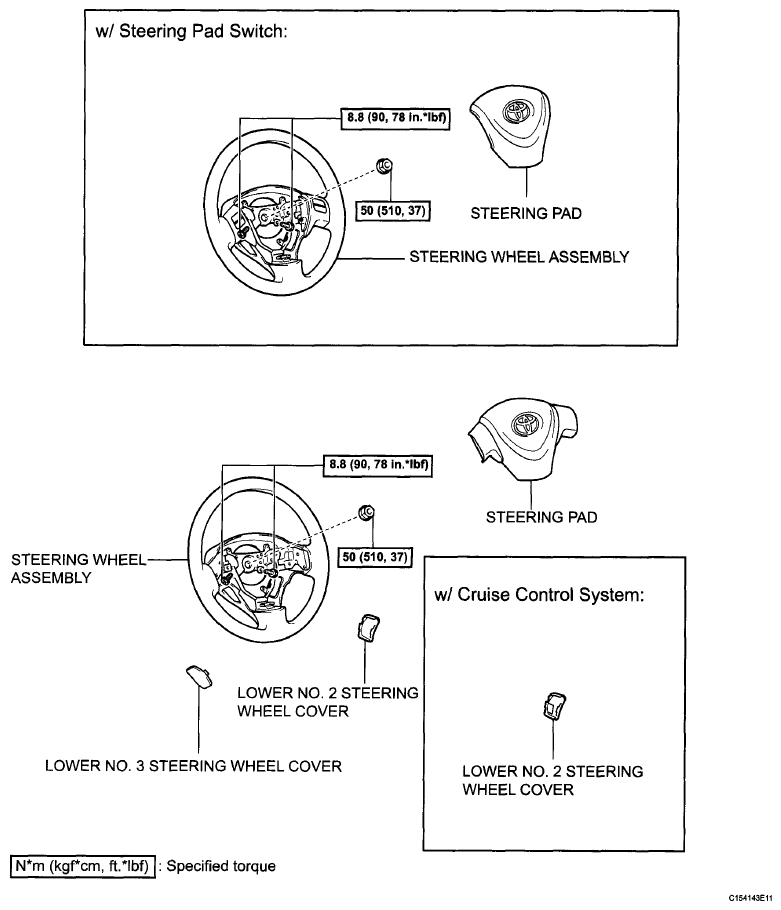

Fig 1: Steering Angle Sensor (W/ VSC) Replacement Components With Torque Specifications (1 Of 2)
G06014842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

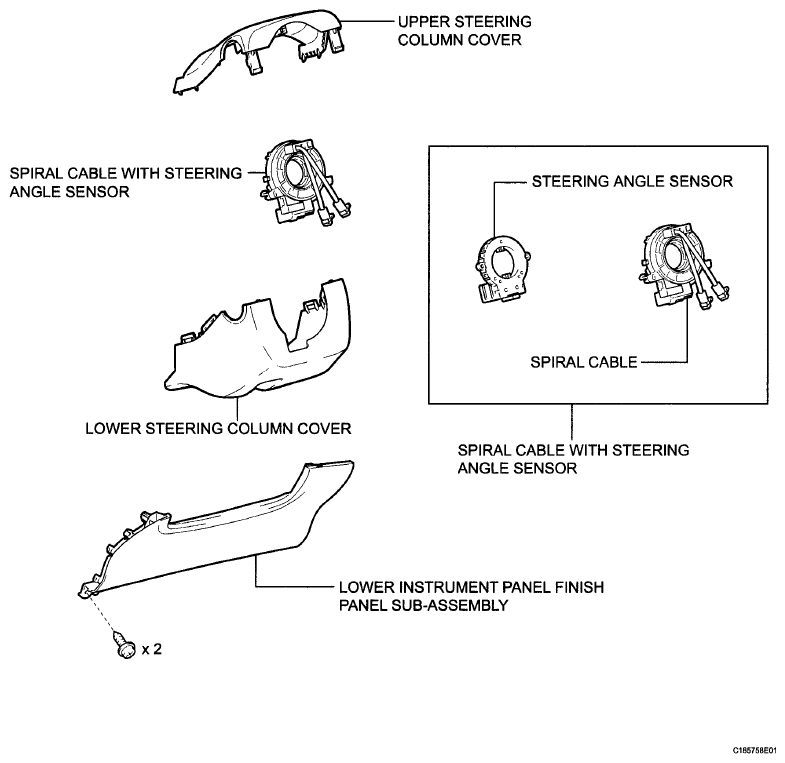

Fig 2: Identifying Steering Angle Sensor (W/ VSC) Components (2 Of 2)
G06014090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
