Steering Column Assembly: Disassembly

1. Secure the steering column assembly in a vise.
2. Using a center punch, mark the center of the tapered-head bolt.
3. Using a 3 to 4 mm (0.118 to 0.157 in.) diameter drill bit, drill a hole in the tapered-head bolt.
   Fig 1: Identifying No. 2 Steering Intermediate Shaft Assembly Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screw extractor, remove the tapered-head bolt, and then remove the steering lock actuator assembly from the steering column assembly.

1. Secure the steering column assembly in a vise.
2. Using a center punch, mark the center of the tapered-head bolt.
3. Using a 3 to 4 mm (0.118 to 0.157 in.) diameter drill bit, drill a hole in the tapered-head bolt.
   Fig 2: Removing Steering Lock Actuator Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screw extractor, remove the tapered-head bolt, and then remove the steering column upper with switch bracket assembly from the steering column assembly.

Fig 3: Removing Steering Column Upper With Switch Bracket Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and the ignition or starter switch assembly from the steering column upper bracket.

Fig 4: Identifying Ignition Or Starter Switch Assembly Mounting Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the solenoid wire connector from the ignition or starter switch assembly.
   Fig 5: Identifying Solenoid Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws and the ignition or starter switch assembly from the steering column upper bracket.
   Fig 6: Identifying Ignition Or Starter Switch Assembly Mounting Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and the key interlock solenoid from the steering column upper bracket.
   Fig 7: Identifying Key Interlock Solenoid Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the solenoid wire connector from the key interlock solenoid.

Fig 8: Locating Solenoid Wire Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the solenoid wire from the steering column upper bracket.

Fig 9: Identifying Solenoid Wire

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Turn the ignition switch lock cylinder assembly to the ACC position.

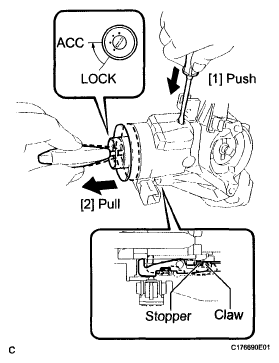

2. Insert a screwdriver into the hole of the steering column upper with switch bracket assembly as shown in the illustration. Pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly.
   NOTE: Make sure to pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly. Failure to do so will affect later work operations.
   Fig 10: Inserting Screwdriver Into Hole Of Steering Column Upper With Switch Bracket Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Insert a screwdriver into the hole of the steering column upper with switch bracket assembly. Tilt the screwdriver as shown in the illustration to disengage the claw of the ignition switch lock cylinder assembly, and pull out the ignition switch lock cylinder assembly.

Fig 11: Removing Ignition Switch Lock Cylinder Assembly (W/O Smart Key System)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the unlock warning switch assembly by pushing up the center part and releasing the 2 claws.

HINT:

Slide the unlock warning switch in the direction shown by the arrow in the illustration to remove it.
