Inspection

2ZR-FE ENGINE CONTROL: MASS AIR FLOW METER: INSPECTION

INSPECTION

1. INSPECT MASS AIR FLOW METER

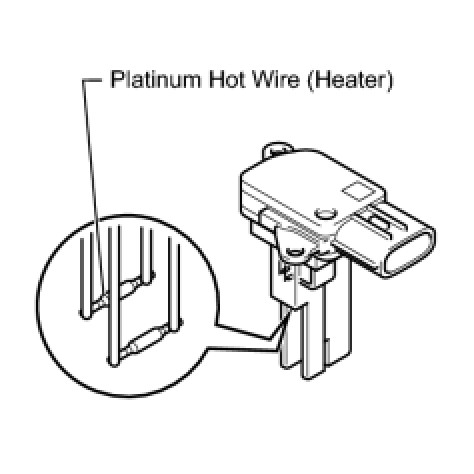

(a) Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter shown in the illustration.
Result:
No foreign matter attached.
If the result is not as specified, replace the mass air flow meter.

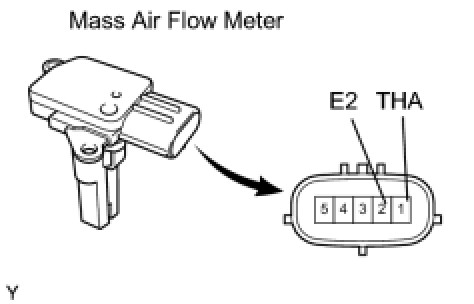

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
