2ZR-FE ENGINE CONTROL: INTEGRATION RELAY: REMOVAL

REMOVAL

1. REMOVE NO. 1 RELAY BLOCK COVER
2. REMOVE INTEGRATION RELAY

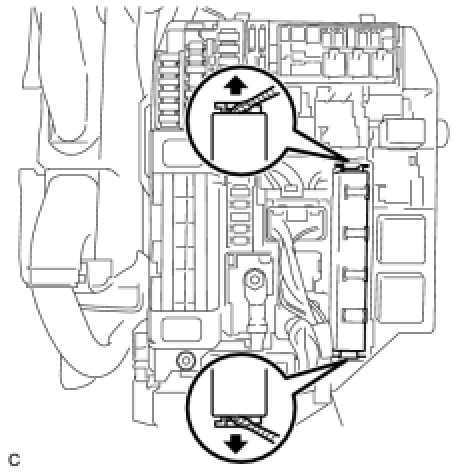

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the integration relay.

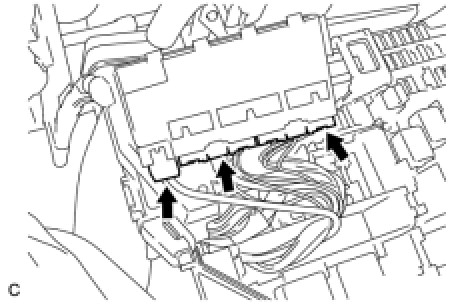

(b) Disconnect the 3 connectors.
