Installation








HEATING / AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

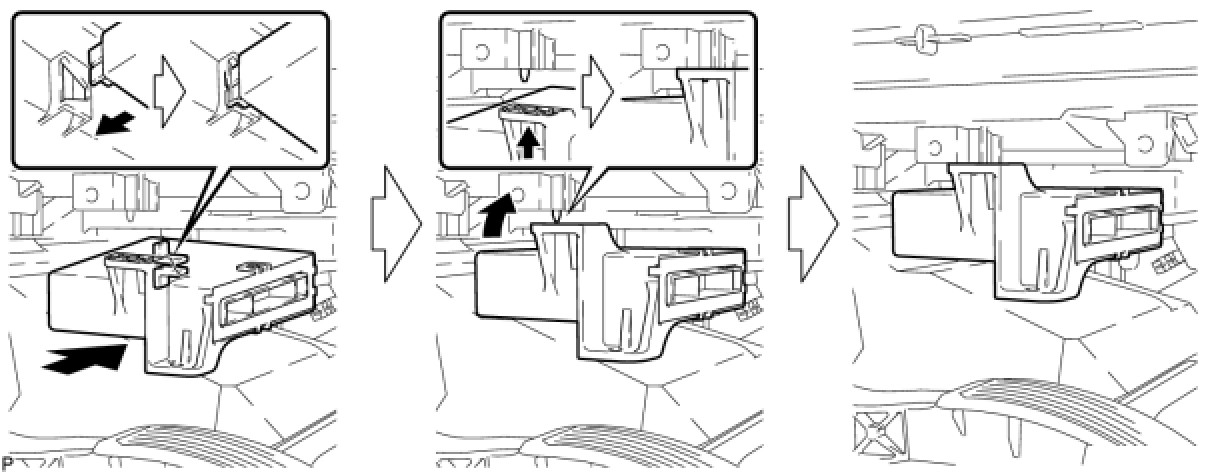

(a) Install the air conditioning amplifier assembly as shown in the illustration.









(b) Install the screw.

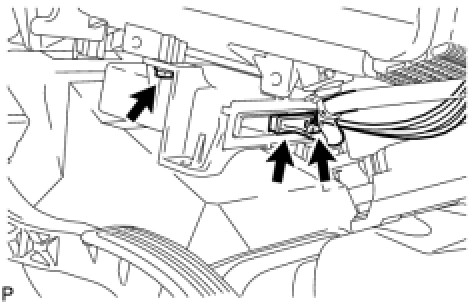

(c) Connect each connector.
2. INSTALL FRONT NO. 2 CONSOLE BOX INSERT Installation
