Oil Pump
OIL PUMP ASSEMBLY

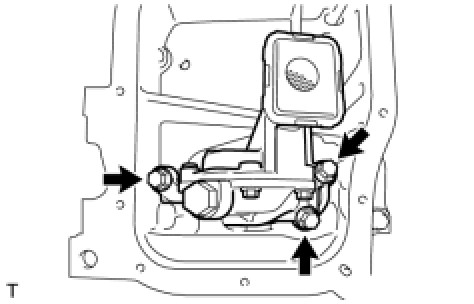

Install the oil pump with the 3 bolts.
Torque
21 Nm (214 kgf-cm, 16 ft-lbf)
