Flywheel / Flexplate

FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)

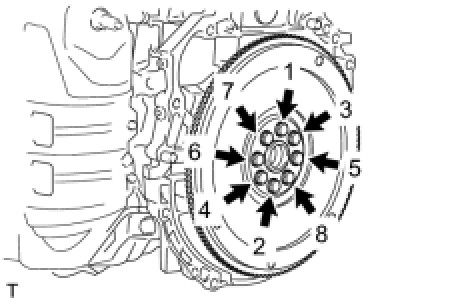

In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque 130 Nm (1326 kgf-cm, 96 ft-lbf)

DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)

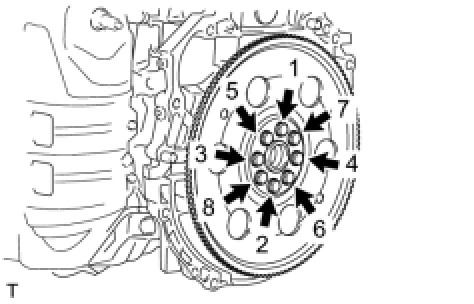

In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque 98 Nm (999 kgf-cm, 72 ft-lbf)
