Corolla LE, 1.8 L
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control/Dynamic Control System
>>
Vehicle Stability Control System
>>
DTC C1249/49 Open in Stop Light Switch Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

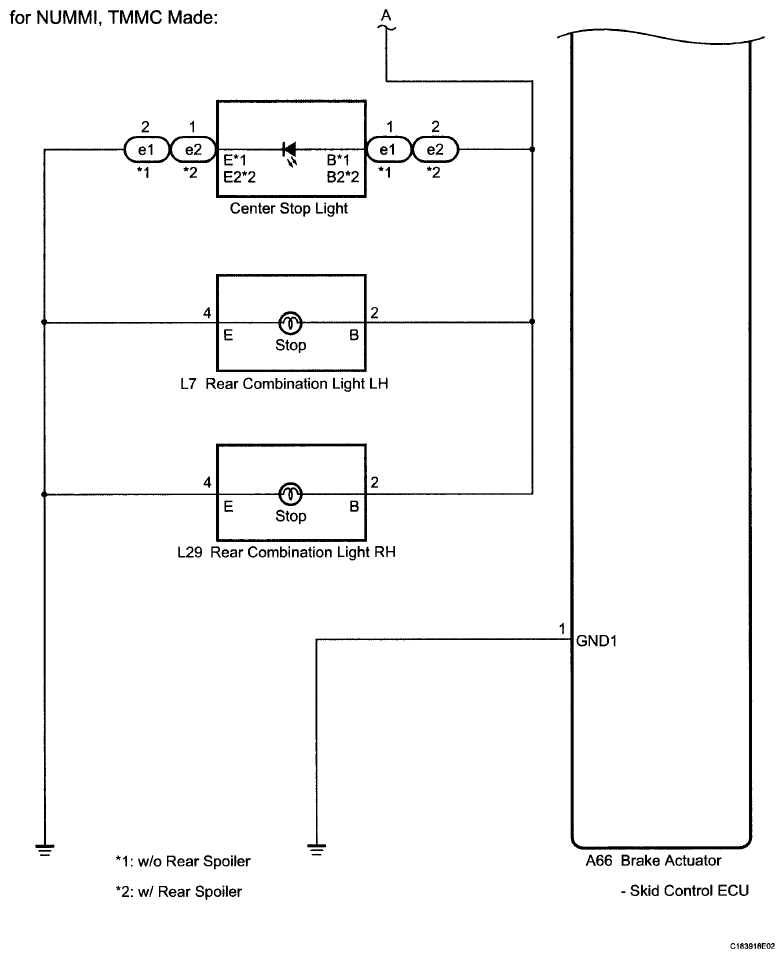

Fig 1: Open In Stop Light Switch - Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

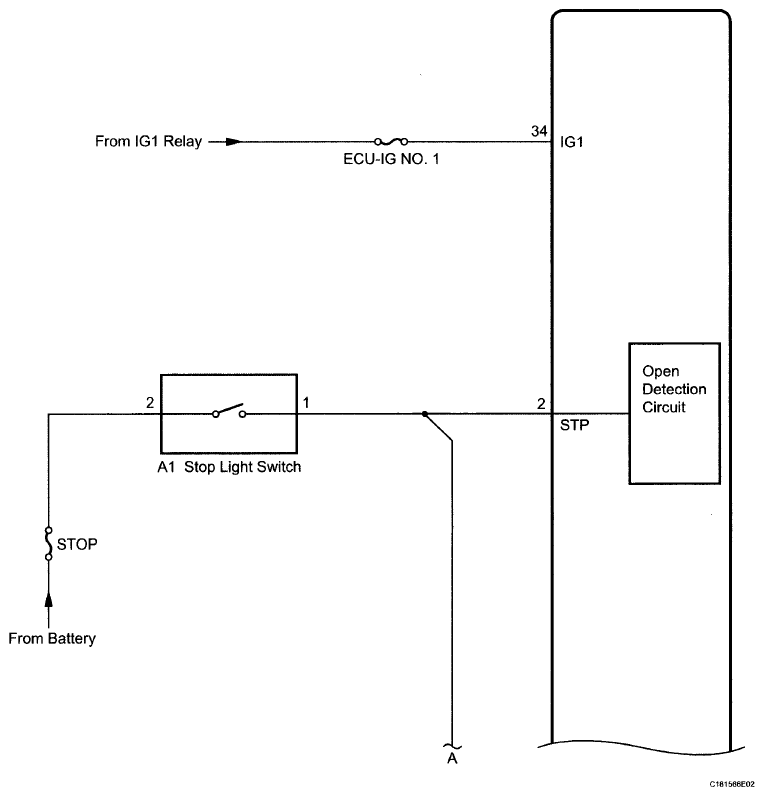

Fig 2: Open In Stop Light Switch - Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

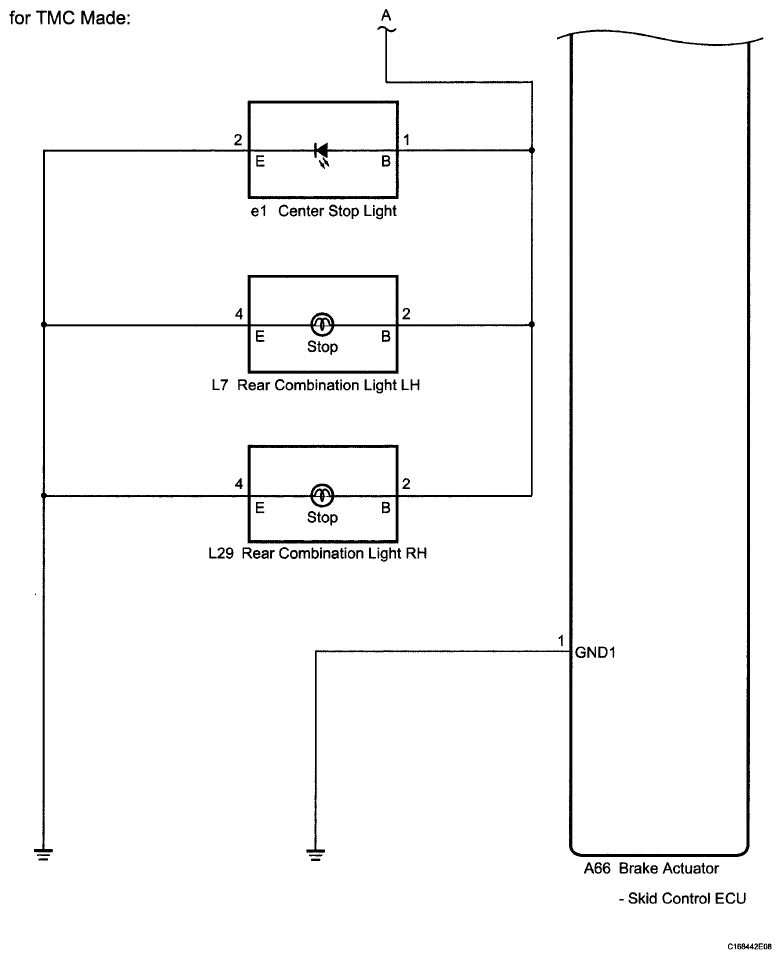

Fig 3: Open In Stop Light Switch - Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
