Section 13 (Engine Control System (2ZR-FE) - System And Component Testing, On-Vehicle Inspection, Removal & Installation): ECM: Components
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Identifying ECM Components Part Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

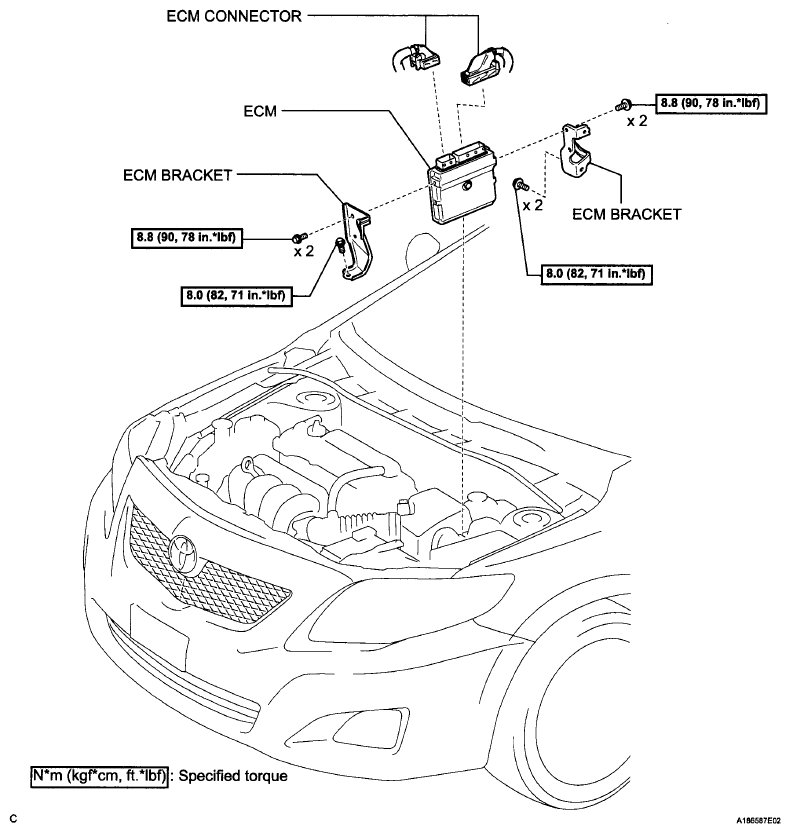

Fig 2: Identifying ECM Components Part Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
