EVAP System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

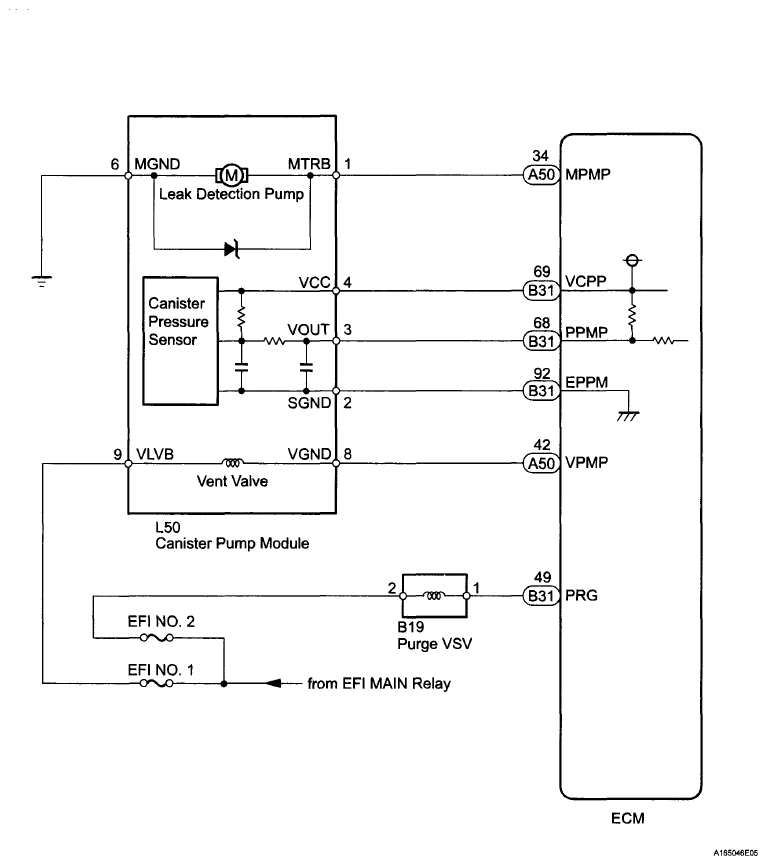

Fig 1: Leak Detection Pump And Purge VSV - Wiring Diagram
G06007974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
