System Diagram

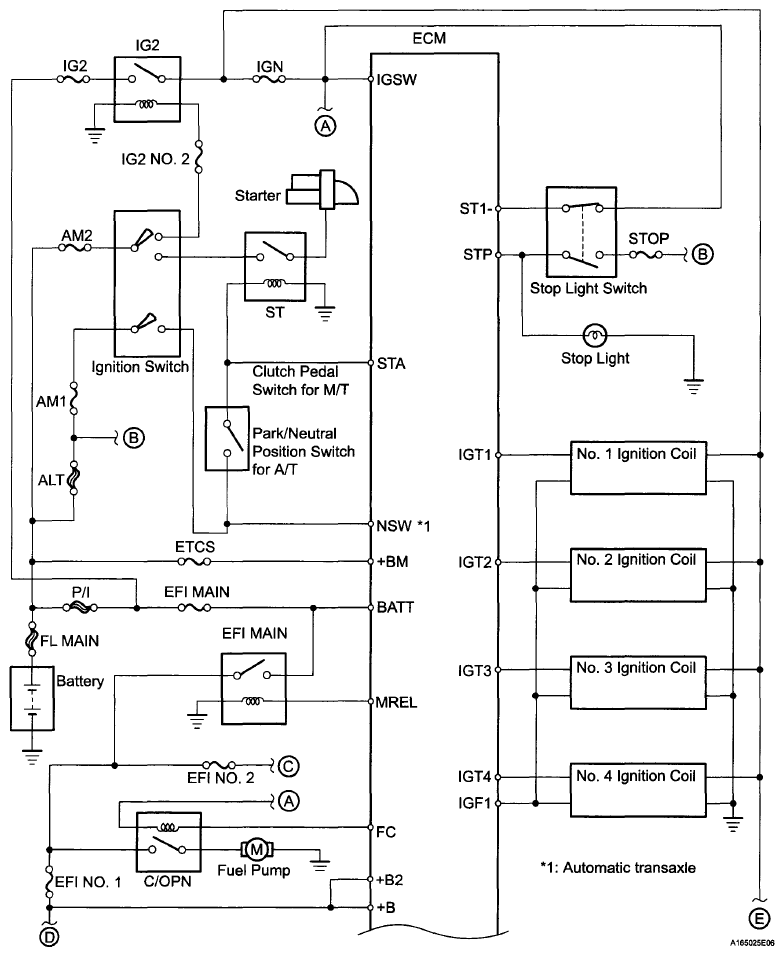

Fig 1: SFI System Diagram (1 Of 3)
G06007262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

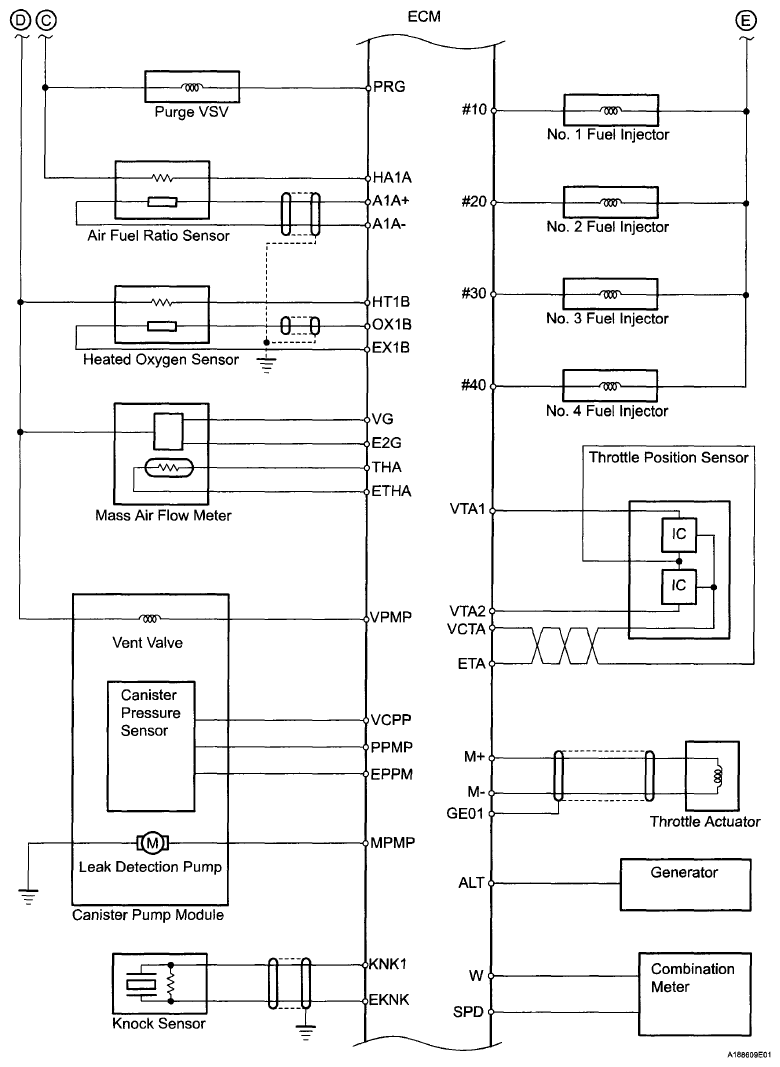

Fig 2: SFI System Diagram (2 Of 3)
G06007263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

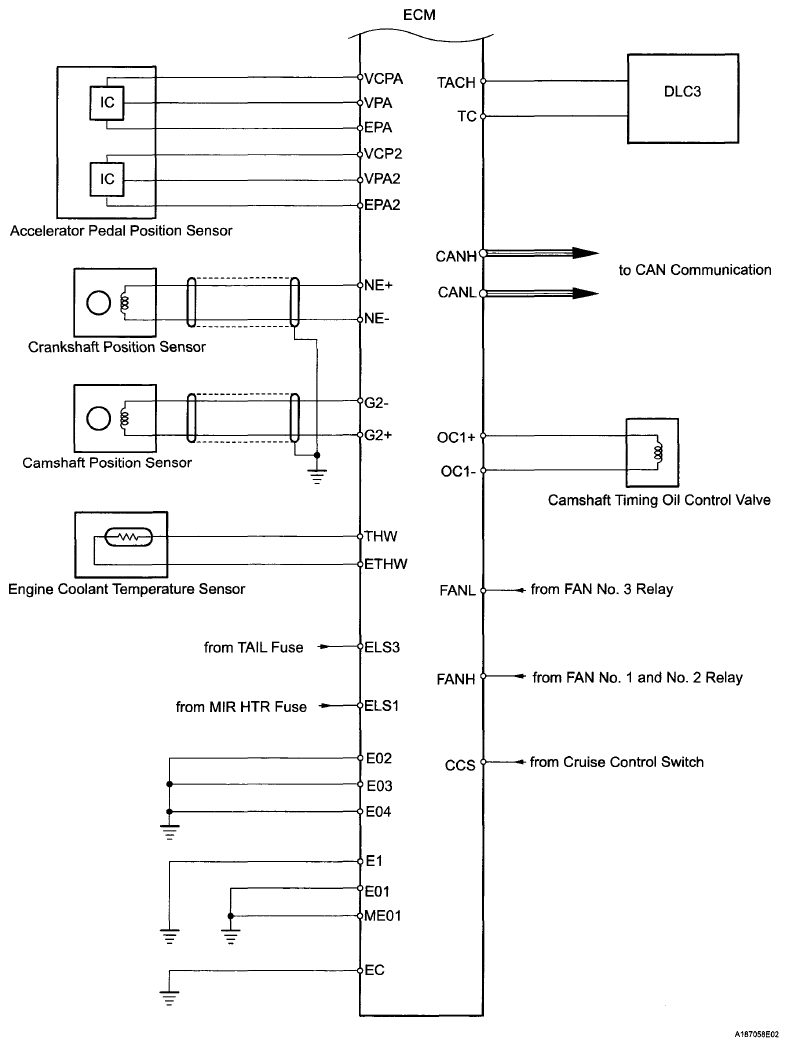

Fig 3: SFI System Diagram (3 Of 3)
G06007264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
