Inspection Procedure

  1. CHECK FUSE (ECU-IG, ECU-B)
    1. Remove the ECU-IG fuse from the main body ECU.
    2. Remove the ECU-B fuse from No.2 engine room R/B.
    3. Check the fuses resistance.

      Standard resistance:

      Below 1 Ω

    4. Reinstall the ECU-B fuse.
    5. Reinstall the ECU-IG fuse.

    NG: REPLACE FUSE

    OK: Go to next step

  2. INSPECT RELAY (Marking: POWER)
    1. Remove the POWER relay from the main body ECU.
    2. Check the POWER relay resistance.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2)
      Fig 1: Identifying EFI Relay
      G05581177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reinstall the POWER relay.

    NG: REPLACE RELAY

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (MASTER SWITCH - BATTERY AND BODY GROUND)
    1. Disconnect the H5 power window regulator master switch connector.
    2. Fig 2: Identifying H5 Power Window Regulator Master Switch Connector Terminals
      G05581178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the voltage of the wire harness side connector.

      Standard voltage

      TESTER CONNECTION SPECIFIED VOLTAGE CONDITION

      Tester Connection Condition Specified Condition
      H5-9 (B) - Body ground Ignition switch ON 11 to 14 V
    4. Measure the resistance of the wire harness side connector.

      Standard resistance

      TESTER CONNECTION SPECIFIED RESISTANCE CONDITION

      Tester Connection Specified Condition
      H5-1 (E) - Body ground Below 1 Ω
    5. Reconnect the master switch connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Remove the power window regulator master switch.

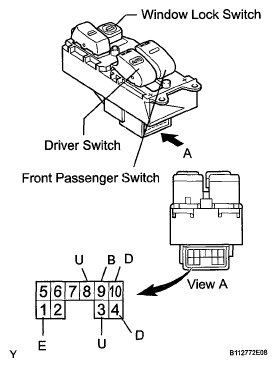

    2. Fig 3: Identifying Power Window Regulator Master Switch Terminals
      G05581179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Power Window Switch Condition Tester Connection Specified Condition
      Always (ON / OFF) UP 1 (E) - 4 (D)
      3 (U) - 9 (B)
      Below 1 Ω
      Always (ON / OFF) OFF 1 (E) - 3 (U)
      1 (E) - 4 (D)
      Below 1 Ω
      Always (ON / OFF) DOWN 1 (E) - 3 (U)
      4 (D) - 9 (B)
      Below 1 Ω
      Always (ON / OFF) AUTO DOWN 1 (E) - 3 (U)
      4 (D) - 9 (B)
      Below 1 Ω
      OFF UP 1 (E) - 10 (D)
      8 (U) - 9 (B)
      Below 1 Ω
      OFF OFF 1 (E) - 8 (U)
      1 (E) - 10 (D)
      Below 1 Ω
      OFF DOWN 1 (E) - 8 (U)
      9 (B) - 10 (D)
      Below 1 Ω
      ON UP 1 (E) - 10 (D) 10 kΩ or higher
      8 (U) - 9 (B) Below 1 Ω
      ON OFF 8 (U) - 10 (D) Below 1 Ω
      ON DOWN 1 (E) - 8 (U) 10 kΩ or higher
      9 (B) - 10 (D) Below 1 Ω
    4. Reinstall the master switch.

    NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY  (See REMOVAL  )

    OK: REPLACE MAIN BODY ECU
