Power Window Regulator Motor: Components

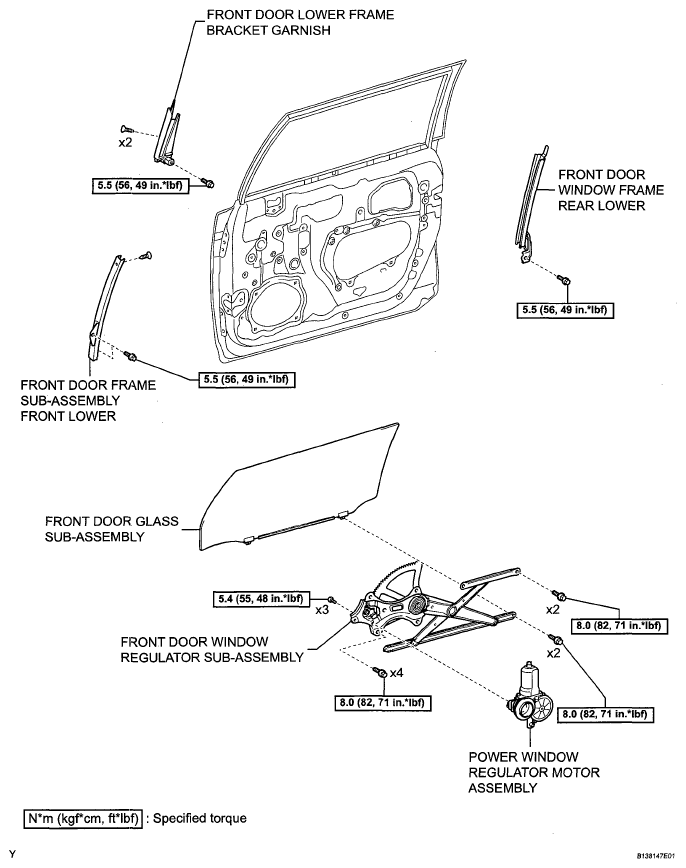

Fig 1: Identifying Power Window Regulator Motor Replacement Components With Torque Specification (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

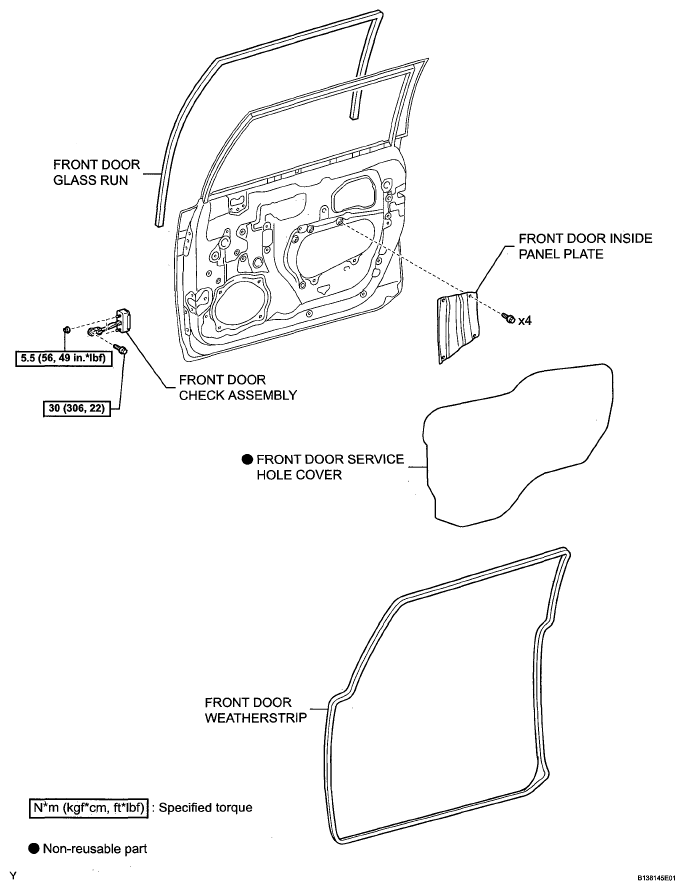

Fig 2: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

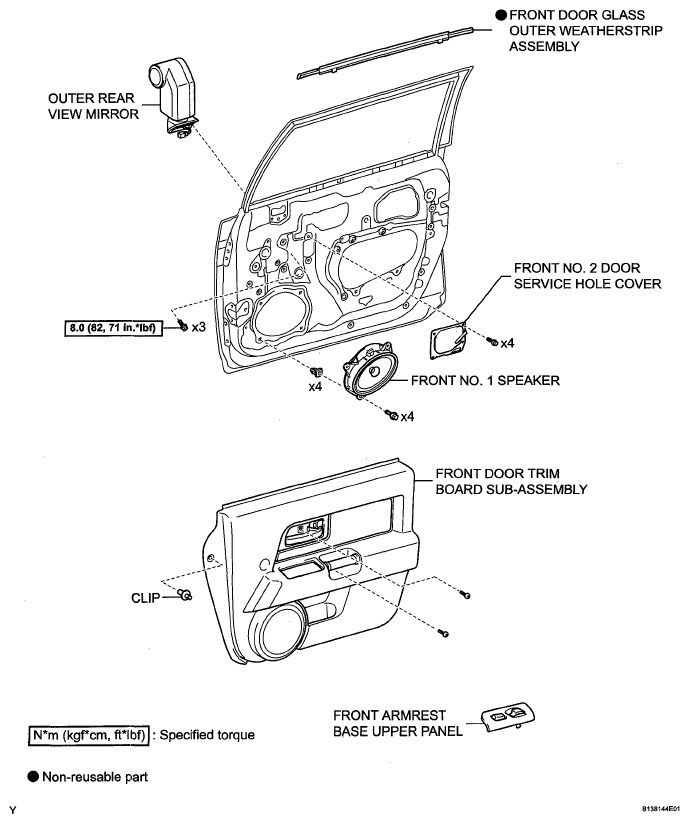

Fig 3: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
