DTC C1258/58 Transfer 4WD Position Switch Circuit; DTC C1282/82 Center Differential Lock Position Switch Malfunction (Test Mode DTC): Wiring Diagram

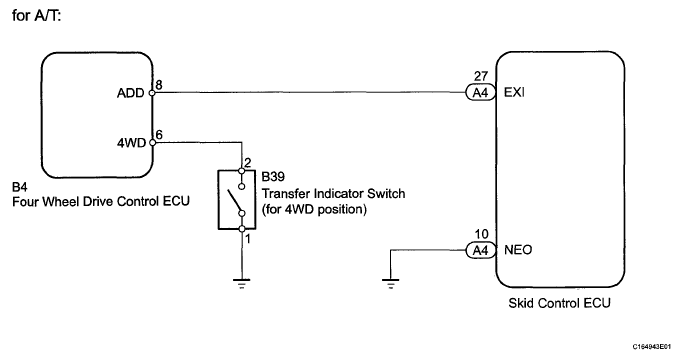

Fig 1: Transfer 4WD Position Switch - Wiring Diagram (For A/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
